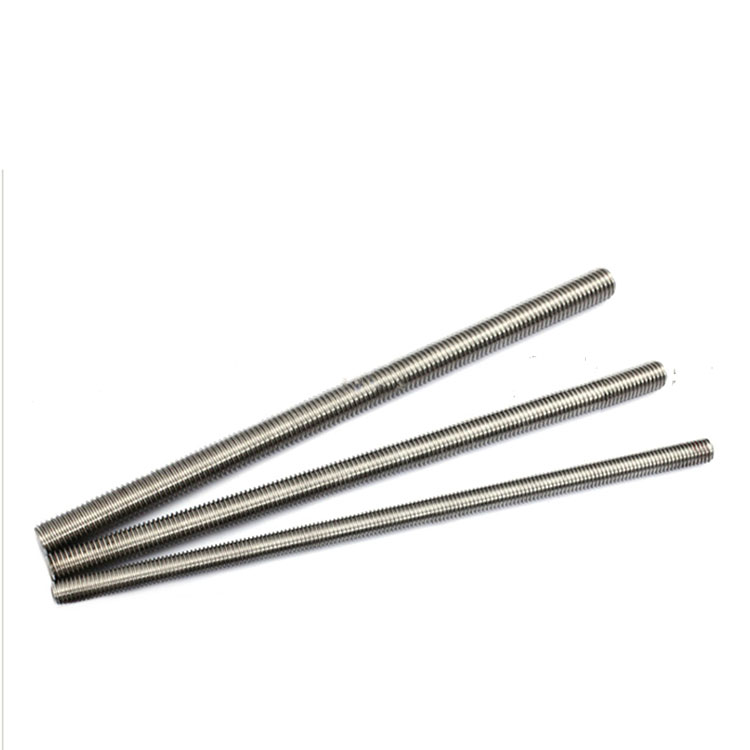

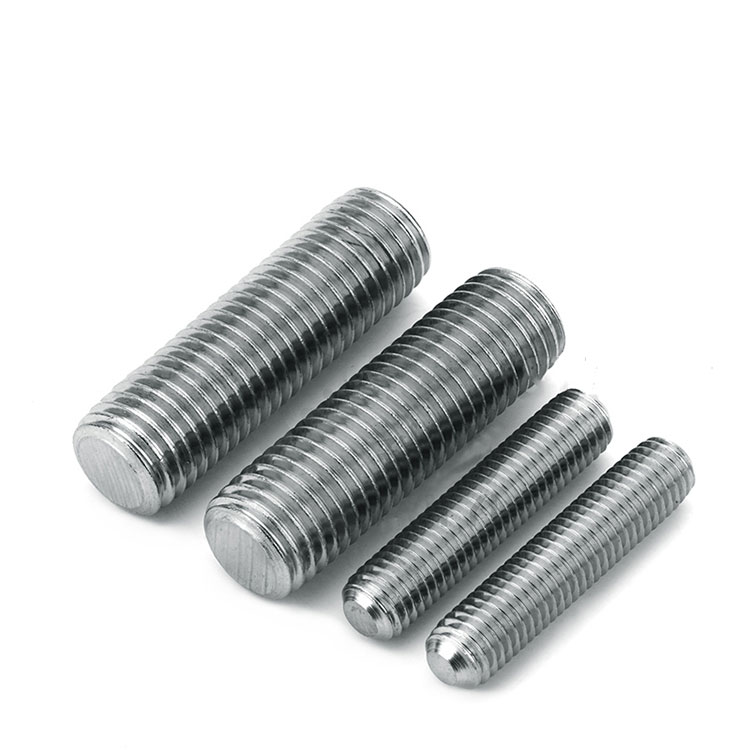

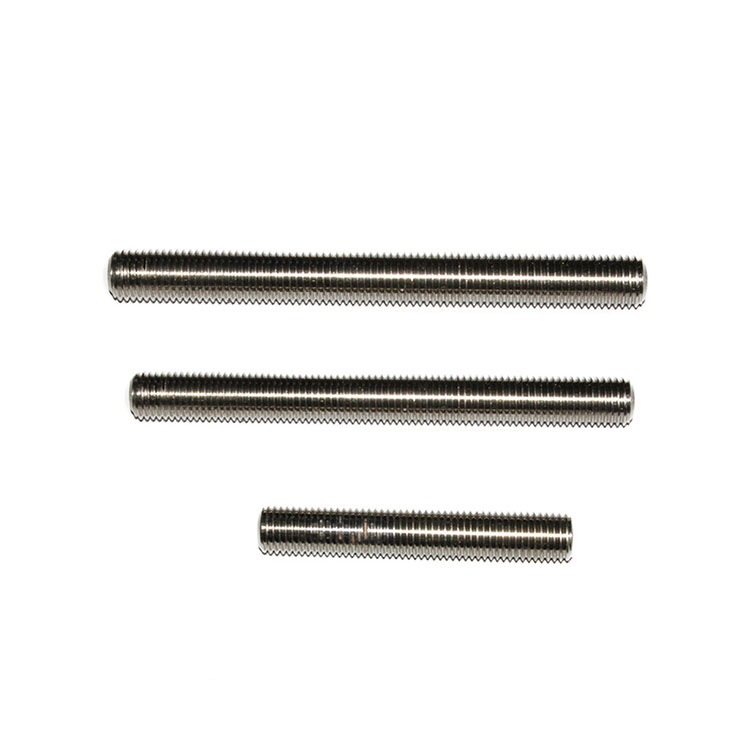

Gangtong Zheli is China manufacturer & supplier who mainly produces All Thread Stainless Steel Threaded Rod with many years of experience. Hope to build business relationship with you. An all-thread stainless steel threaded rod, often referred to as a threaded stud or just an all-thread rod, is a long, cylindrical rod with external threading along its entire length. This type of rod is commonly used in construction and various industrial applications where components need to be fastened together or connected. The stainless steel material provides corrosion resistance, making it suitable for outdoor or corrosive environments. The all-thread design allows for versatile usage, as nuts and other fasteners can be easily screwed onto the rod at any point along its length, providing a customizable and secure fastening solution.
Athreaded rod, also known as astud bolt, which is a relatively long rod that has thread on both ends or the full thread on the rod.They are designed to be used in tension.
Material | Mechanical Characteristics | |||
Reductin Of Area | Yield Point | Tensile Strength | Elongation | |
% | MPA | MPA | % | |
SS201 | ≥45 | ≥275 | ≥520 | 55~66 |
SS304 | ≥50 | ≥205 | ≥515 | ≥40 |
SS316 | ≥50 | ≥205 | ≥515 | ≥40 |
SS304L | ≥50 | ≥170 | ≥485 | ≥40 |
SS316L | ≥50 | ≥170 | ≥485 | ≥40 |
SS410 | ≥45 | ≥275 | ≥480 | ≥20 |
Stainless steel material including SS201, SS304,SS316, SS316L | |||||||||
GRADE | CHEMICAL COMPOSITION1(%MAXIMA UNLESS STATED) | ||||||||
C | Si | Mn | P | S | Cr | Mo | Cu |
|
|
A1 | 0.12 | 1 | 6.5 | 0.2 | 0.15/0.35 | 16-19 | 0.7 | 1.75-2.25 |
|
A2 | 0.1 | 1 | 2 | 0.05 | 0.03 | 15-20 | 5 | 4 |
|
A3 | 0.08 | 1 | 2 | 0.045 | 0.03 | 17-19 | 5 | 1 |
|
A4 | 0.08 | 1 | 2 | 0.045 | 0.03 | 16-18.5 | 2.3 | 4 |
|
A5 | 0.08 | 1 | 2 | 0.045 | 0.03 | 16-18.5 | 2.7 | 1 |
|
C1 |
0.09-0.15 | 1 | 1 | 0.05 | 0.03 | 11.5-14 | - | - |
|
C3 | 0.17-0.25 | 1 | 1 | 0.04 | 0.03 | 16-18 | - | - |
|
C4 | 0.08-0.15 | 1 | 1.5 | 0.06 | 0.15-0.35 | 12-14 | 0.8 |
|
|
F1 | 0.12 | 1 | 1 | 0.04 | 0.03 | 15-18 | 10 |
|
|
Threaded rods can be used for in many industries for many different applications. A few of these applications are:
1. For use with most standard size fasteners
2. Can be used in repairs and to secure parts together
3. Manufacturing, automotive and construction industries
4. Electrical and plumbing purposes
5. For Temporary Down Ceiling Purpose
6. AC Fittings with down Ceiling.
7. For Special Purpose Machineries where proper alignment is required.
