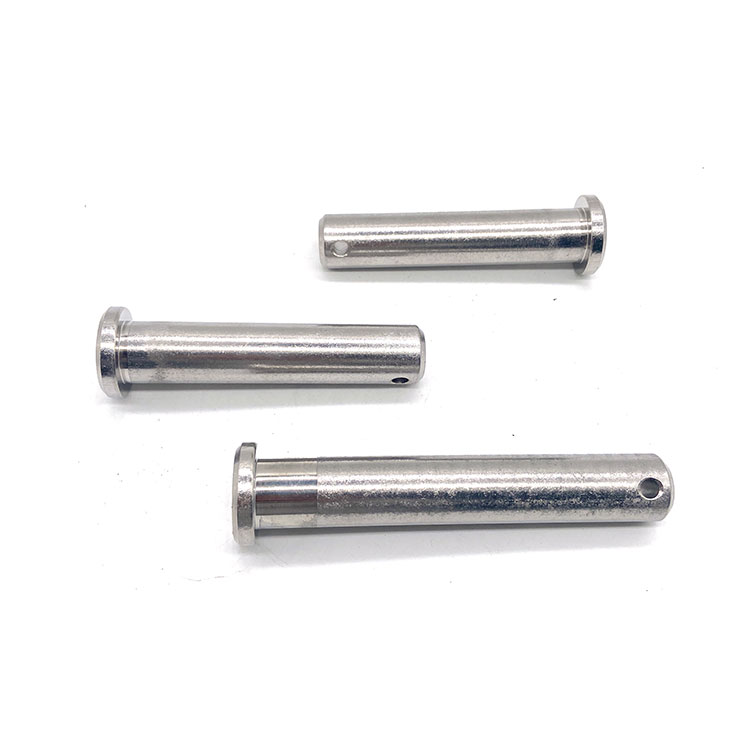

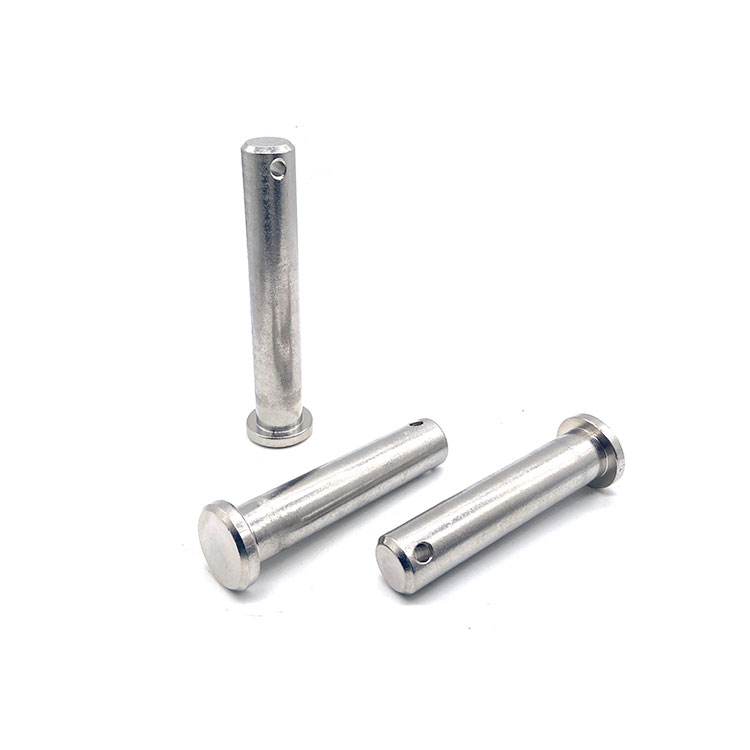

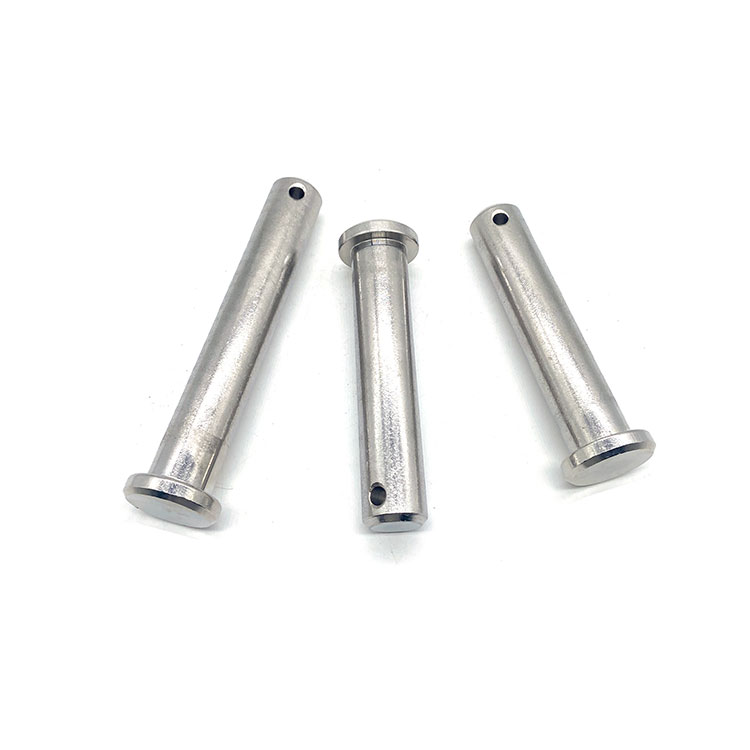

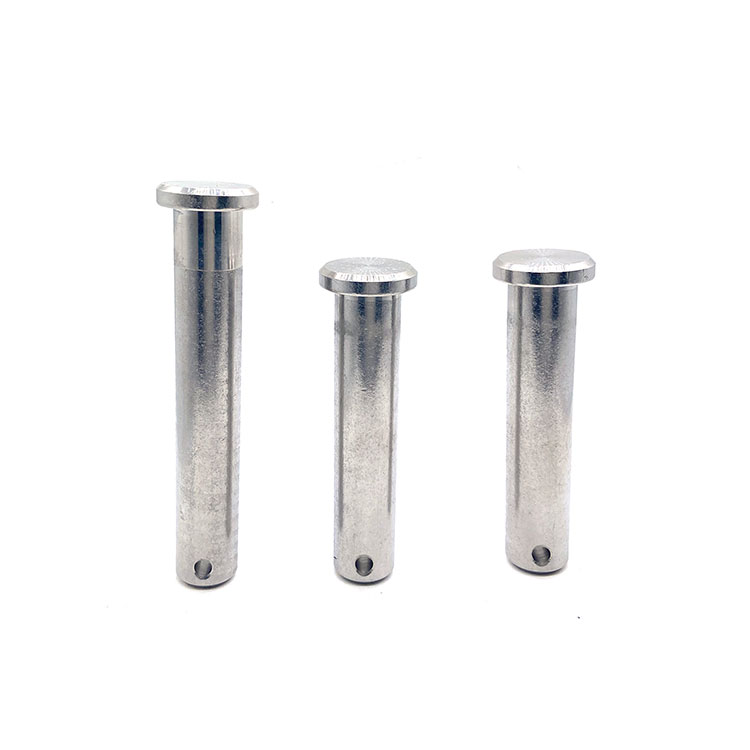

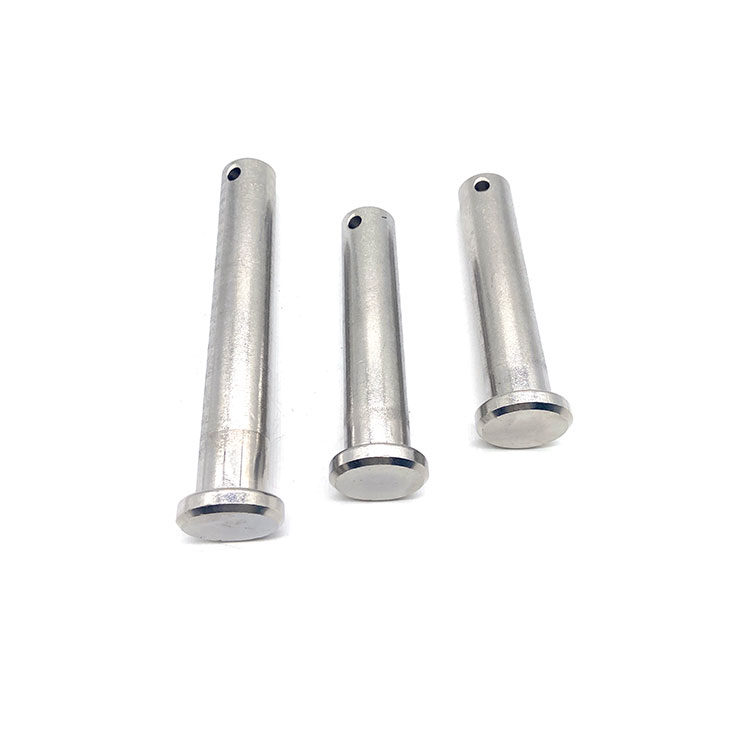

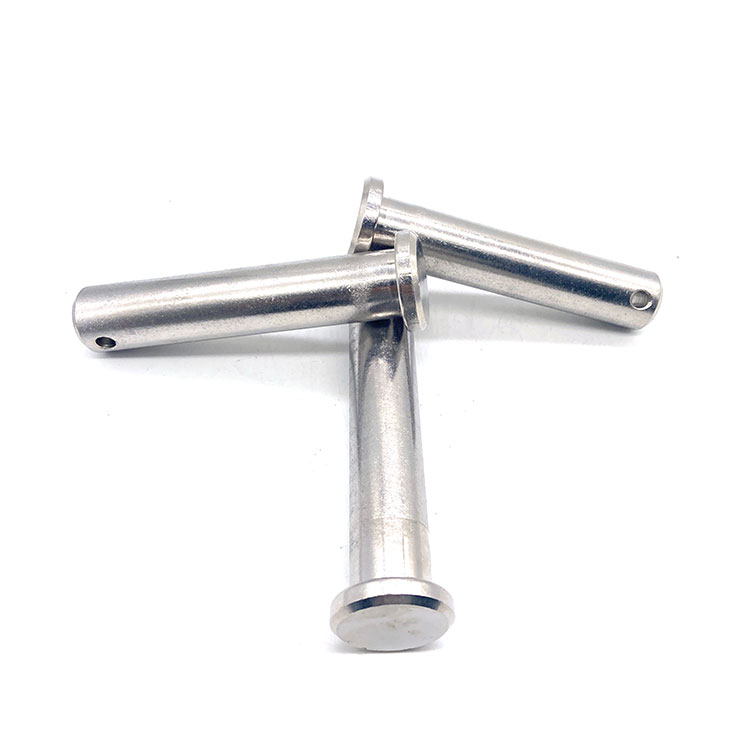

  • DIN 1444 / ISO 2341 Flat Head Stainless Steel Clevis Pin with Hole - 0 DIN 1444 / ISO 2341 Flat Head Stainless Steel Clevis Pin with Hole - 0
  • DIN 1444 / ISO 2341 Flat Head Stainless Steel Clevis Pin with Hole - 1 DIN 1444 / ISO 2341 Flat Head Stainless Steel Clevis Pin with Hole - 1
  • DIN 1444 / ISO 2341 Flat Head Stainless Steel Clevis Pin with Hole - 2 DIN 1444 / ISO 2341 Flat Head Stainless Steel Clevis Pin with Hole - 2
  • DIN 1444 / ISO 2341 Flat Head Stainless Steel Clevis Pin with Hole - 3 DIN 1444 / ISO 2341 Flat Head Stainless Steel Clevis Pin with Hole - 3
  • DIN 1444 / ISO 2341 Flat Head Stainless Steel Clevis Pin with Hole - 4 DIN 1444 / ISO 2341 Flat Head Stainless Steel Clevis Pin with Hole - 4
  • DIN 1444 / ISO 2341 Flat Head Stainless Steel Clevis Pin with Hole - 5 DIN 1444 / ISO 2341 Flat Head Stainless Steel Clevis Pin with Hole - 5

DIN 1444 / ISO 2341 Flat Head Stainless Steel Clevis Pin with Hole

You can rest assured to buy DIN 1444 / ISO 2341 Flat Head Stainless Steel Clevis Pin with Hole from our factory.
Name:DIN 1444 / ISO 2341 Flat Head Stainless Steel Clevis Pin with Hole
Material:carbon steel;stainless steel 304 316
Grade:12.9 10.9 9.8 8.8 6.8 5.6 4.8 4.6 3.6
Finishing:Zinc,HDG,Black,Geomet,Dacroment,Anodized;Polishing, Plain, Sand Blasting
Application: Machinery, Chemical Industry, Environmental, Building, Furniture,
Electronic, Automobile
Certificate:ISO9001:2015
Packing:Cartons+Pallets
delivery time:7-30days

Send Inquiry

Product Description

As the professional manufacturer, we would like to provide you DIN 1444 / ISO 2341 Flat Head Stainless Steel Clevis Pin with Hole.


DIN 1444 / ISO 2341 Flat Head Stainless Steel Clevis Pin with Hole


Product Introduction


The type of pin
In machinery, pins are mainly used for assembly positioning and also as overload shear connections in connection and relaxation level safety devices. The types of pins are: cylinder pin, cone pin, pin with hole, cotter pin and safety pin.
The classification of the pin
The basic forms of pins are cylindrical pins and cone pins. The cylindrical pin is fixed in the pin hole using a little interference. Multiple assembly and disassembly will reduce positioning accuracy. Cone PIN HAS a taper of 1:50, can be self-locking, by cone extrusion action fixed in the pin hole, high positioning accuracy, installation is also convenient, can be repeatedly assembled and disassembled.
The choice of the pin
The type of pin in use is selected according to its working requirements. The diameter of the pin used in the connection can be determined according to the structural characteristics of the connection according to experience, and the strength can be checked when necessary. The positioning pin can be determined directly according to the structure. The length of the pin in each connector is about 1 to 2 times its diameter.
The common material for pins is 35 or 45 steel. The material of safety pin is 35, 45, 50, T8A, T10A, etc., the hardness is 30~36HRC after heat treatment. The pin sleeve material can be 45, 35SiMn, 40Cr, etc., the hardness is 40~50HRC after heat treatment.


product name

DIN 1444 / ISO 2341 Flat Head Stainless Steel Clevis Pin with Hole

Material carbon steel;stainless steel 304 316
Finishing

Machinery, Chemical Industry, Environmental, Building, Furniture,

Electronic, Automobile

Production Process Cold Froging, Machining and CNC, Stamping, Welding
Customized Products
Lead time
Busy season: 15-30days, Slack seaon: 10-15days
Stock Products Stainless steel: DIN933, DIN603, DIN912, DIN6923, DIN934, DIN125, DIN127, DIN7504K
Get Free Samples for standard fastener from Gangtong Zheli Fastener



Our Services

  • Professional Manufacturer:All of our Fastener are designed and manufactured according to buyers' specification and performance.

  • Quality is guaranteed:Durability testing and critical technical design to enhance fasteners lifetime.

  • Cost effective:Competitive prices with professional factory supply

  • Perfect fastening solution with 10 years experiences to solve your problem:Wide range of parts selection.

  • Customized Ideal Fasteners:Customized services according to the samples and drawing offered
