DIN603 Carbon Steel Hot Dip Galvanized GR 4.8 GR 8.8 Full Thread Carriage Bolt
  • DIN603 Carbon Steel Hot Dip Galvanized GR 4.8 GR 8.8 Full Thread Carriage Bolt - 0 DIN603 Carbon Steel Hot Dip Galvanized GR 4.8 GR 8.8 Full Thread Carriage Bolt - 0

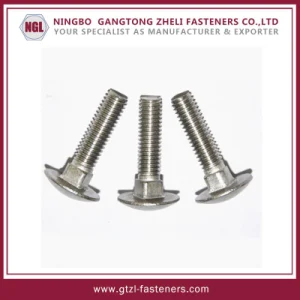

DIN603 Carbon Steel Hot Dip Galvanized GR 4.8 GR 8.8 Full Thread Carriage Bolt

Gangtong Zheli is DIN603 Carbon Steel Hot Dip Galvanized GR 4.8 GR 8.8 Full Thread Carriage Bolt manufacturers and suppliers in China who can wholesale it.
Surface: hot dip galvanized(HDG)
Material: carbon steel
Size:M5-M30
MOQ: ≥900KGS

Send Inquiry

Product Description

Gangtong Zheli is China manufacturer & supplier who mainly produces DIN603 Carbon Steel Hot Dip Galvanized GR 4.8 GR 8.8 Full Thread Carriage Bolt with many years of experience. Hope to build business relationship with you. DIN603 carriage bolts, made of carbon steel, are available in different grades, including GR 4.8 and GR 8.8. These bolts are hot-dip galvanized to provide corrosion resistance and durability. They feature full threads, making them suitable for various applications where a strong and secure fastening is required. Carriage bolts are commonly used in situations where a smooth or flat surface is needed, and their square neck prevents the bolt from turning during installation. Whether it's for construction, machinery, or other applications, these carriage bolts are designed to meet your fastening needs with high-quality and reliable performance.

DIN603 Carbon Steel Hot Dip Galvanized GR 4.8 GR 8.8 Full Thread Carriage Bolt


Hex Bolt-it will be furnished with dimensions conforming to ASME B18.2.1 Flat washer facing under the head that meet specific tolerances as described under ASME B18.2.1

Carbon Steel Hex Cap Screws Material andchemical composition:

Carbon steel material including Q195 Q235 Q345 Q500 S35K C45Etc.


Material No. C≤ Si≤ Mn≤ P≤ S≤ Ti≤
Q195 0.12 0.3 0.5 0.035 0.04
Q235 0.22 0.35 1.4 0.04 0.05
Q275 0.24 0.35 1.5 0.45 0.05
Q345 0.2 0.5 1.7 0.035 0.035 0.2
Q500 0.18 0.6 1.8 0.03 0.025 0.2
Q550 0.18 0.6 1.8 0.03 0.03 0.2


Hot rolled wire rod - Dial (cold) - Spheroidizing annealing (softening) - mechanical descaling - acid - cold dial - - thread processing - heat treatment - Test

Carbon Steel metric common materials and grade(class):



METRIC BOLT:GB/T 3098.1-2010,ISO898.1-2009
CLASS 4.6;4.8 5.8 6.8 8.8 9.8 10.9 12.9
SIZE ALL SIZE ≦M12 >M12 ≦M8 >M8 ALL SIZE
COMMON MATERIALS 1008 ~ 1015 1012 ~1017 10B21 / 1022 10B21 10B33 10B21 10B33 10B33 / SCM435/ML20MnTiB SCM435
ML08AL SWRCH8A~ SWRCH15A SWRCH15A~ SWRCH18A SWRCH22A 35K
35ACR 10B35
AISI 4140
HEAT TREATMENT(YES/NO) NO YES


Carbon Steel Hex Bolt Application:



Environmental protection equipment, medical equipment, communications equipment, electric power facilities, electronic products, food machinery, petrochemical industry, ship assembly, pump valve, pipe, building curtain wall, open places, etc.



Hot Tags: DIN603 Carbon Steel Hot Dip Galvanized GR 4.8 GR 8.8 Full Thread Carriage Bolt, China, Manufacturers, Suppliers, Customized, Quality, Factory, Price
