High Tensile Shear Connector Stud With Ceramic ferrule

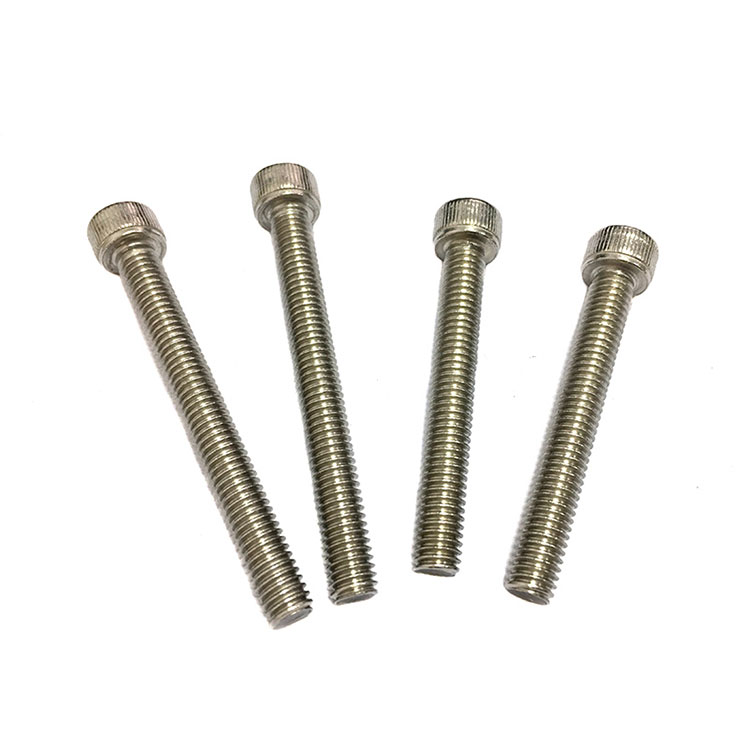

You can rest assured to buy DIN912 Stainless Steel 304 Cap Head Hex Socket Bolt from our factory. Shear studs, also known as shear connector studs, are robust fasteners designed for high-strength and stiff connections. These studs are commonly referred to as cylindrical or cheese head studs when used for arc stud welding. Shear studs typically come in various specifications, with nominal diameters ranging from Ф10 to Ф25mm and total lengths for welding purposes ranging from 40 to 300mm. The head of the stud is often marked with manufacturer identification symbols, and they are widely used in welding applications.

Shear Connector Studs are specially designed to create a strong bond between concrete slabs and steel beams, effectively resisting shear loads in composite construction. This innovative connection method allows for significantly higher loads, up to 1000 kg/m2, compared to conventional methods. The simplicity and efficiency of this process save both time and money in construction projects.

Ceramic Ferrules, also known as shear stud welding ceramic rings, play a crucial role in shear stud connector welding, especially in projects involving welding through steel decks or steel beams. These ceramic ferrules are constructed from cordierite and are capable of withstanding high temperatures and thermal shock without melting or breaking. They are essential components in ensuring a successful and durable shear stud welding process.

It's necessary part for shear studs welding, designed with the following functions:

◇The ceramic ferrules make the shear studs welding connection point metal water easy forming, let the shear connectors with steel beam connect more solide and more tight

◇Prevent the damage of stud welder gun and welding gun components assemblage like stud chucks during the shear studs welding work.

◇To Reducing the arc welding spatter and smoke damage to workers

ceramic ferrules are produced as ISO13918:2008 standard with high hardness and High temperature resistant, can significant improve the weld result.
