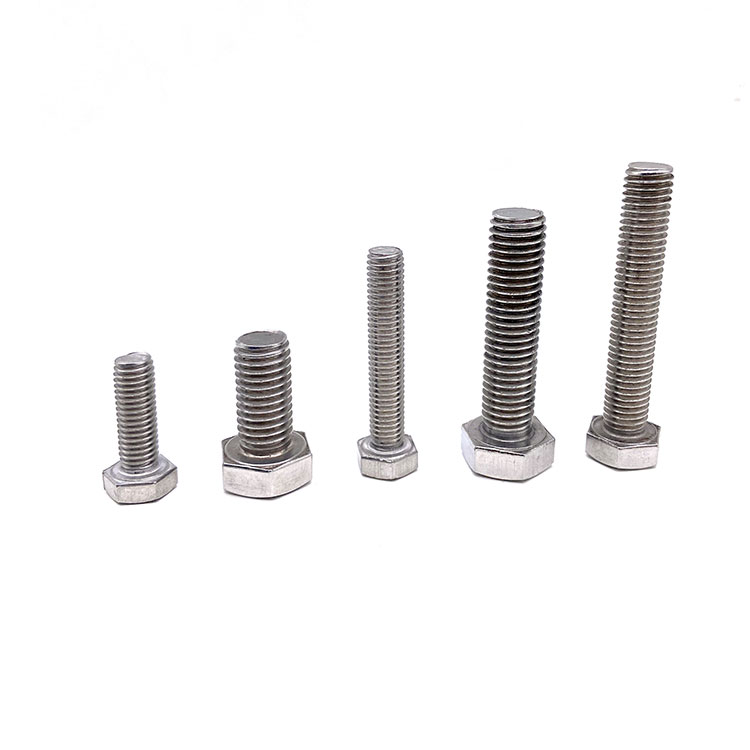

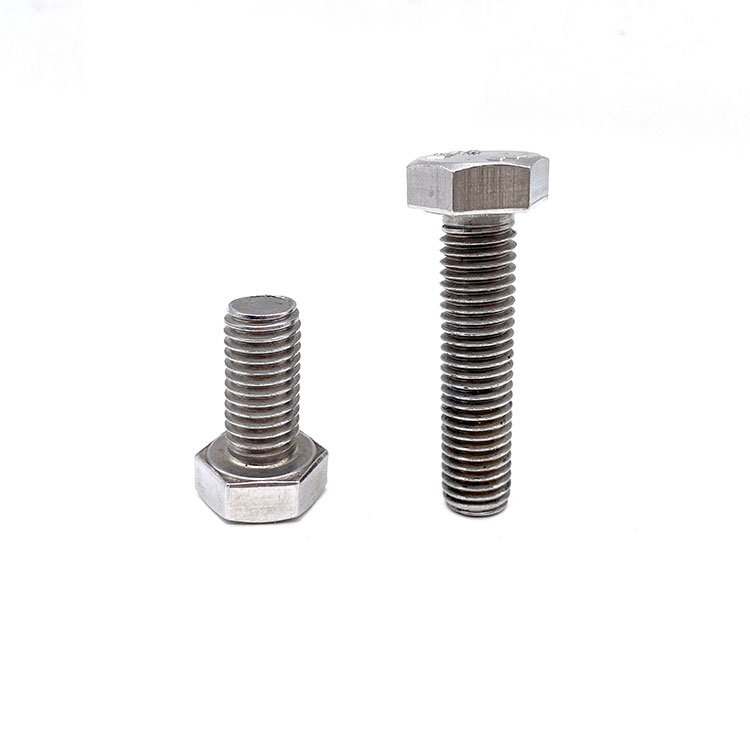

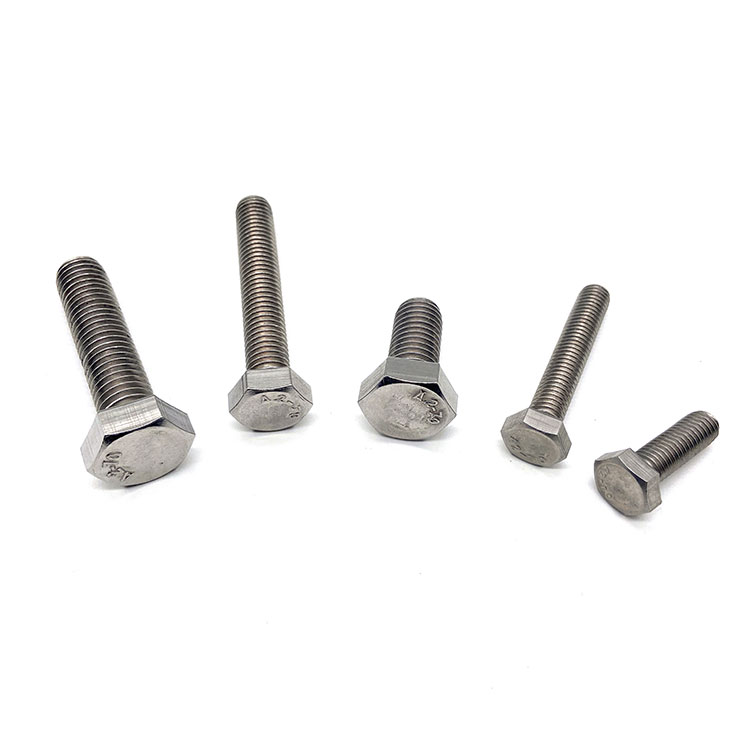

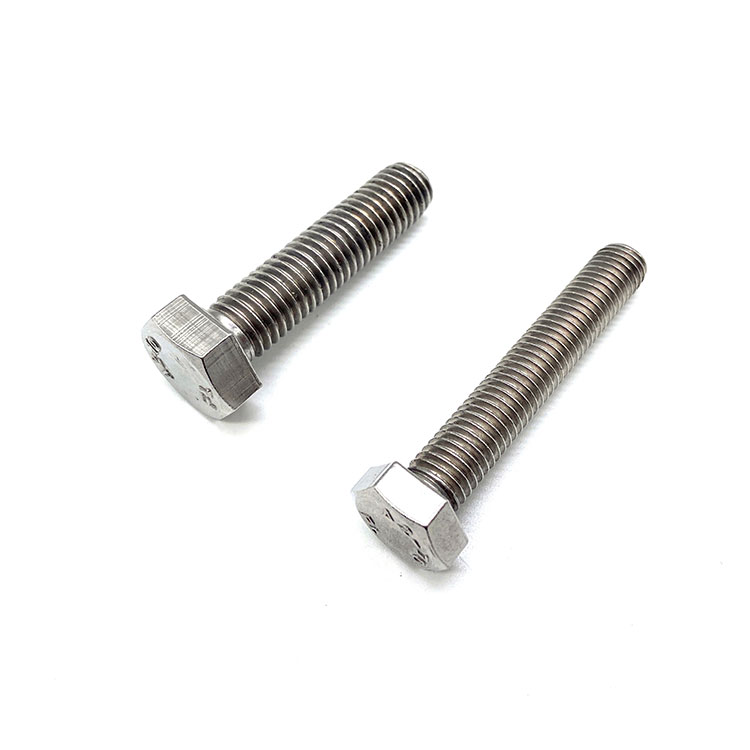

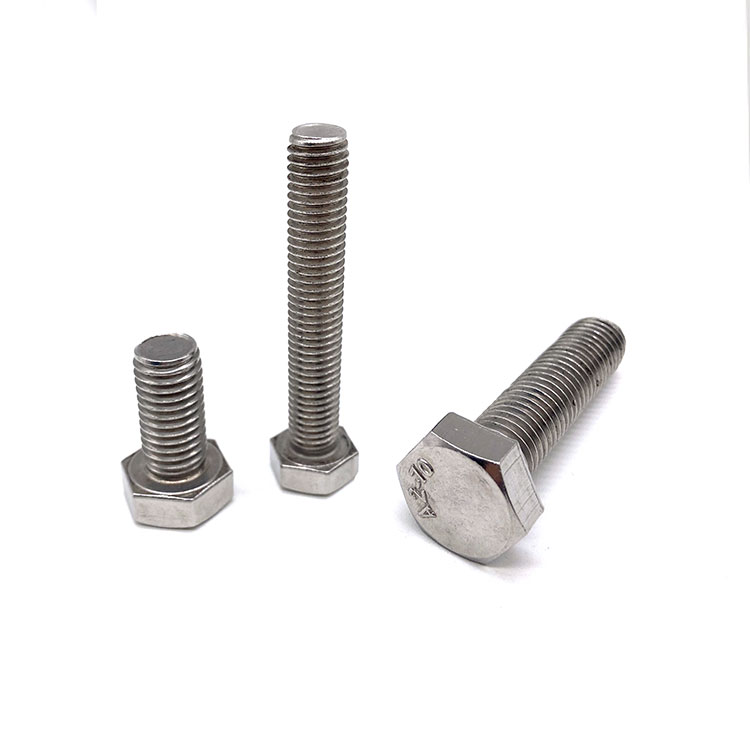

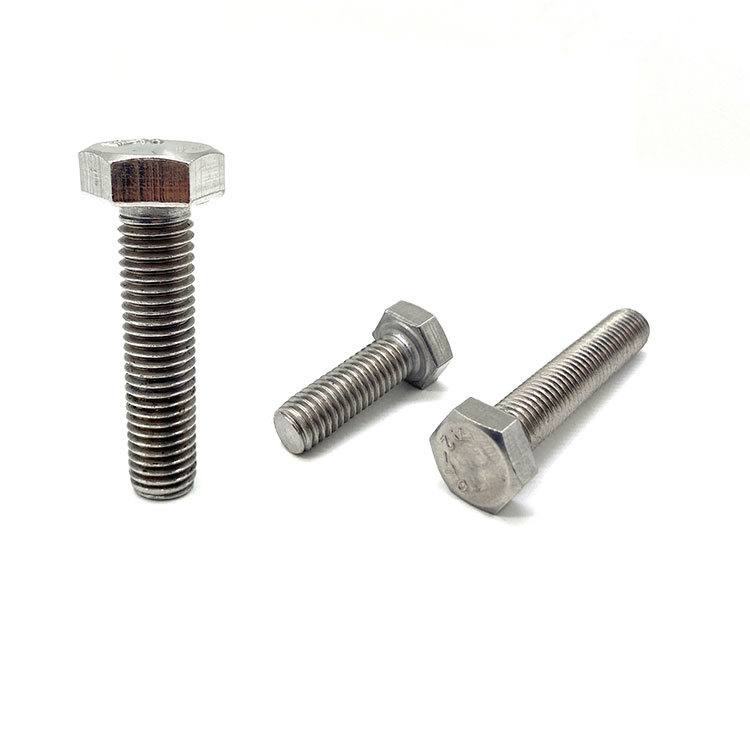

Gangtong Zheli is China manufacturer & supplier who mainly produces DIN933 A2-70 SS304 SS316 Stainless steel Full Threaded Hex Head Bolts Hex Cap Screws with many years of experience. Hope to build business relationship with you. Fully Threaded Tap Bolts, often referred to as Hex Head Tap Bolts, feature a stem that is threaded entirely from the base to the head, along with a washer bearing surface beneath the head. These bolts are distinct from tapping screws in that they are intended to be inserted through holes in assembled components. They lack internal threads of their own and are secured in place by torquing the head. The complete threading makes them versatile and suitable for a range of applications. For example, they are frequently used in the automotive repair sector for fastening motors to machinery. They are also employed with pulleys to fine-tune belt tension.
CLASS | 4.6;4.8 | 5.8 | 6.8 | 8.8 | 9.8 | 10.9 | 12.9 | |||
SIZE | ALL SIZE | ≦M12 | >M12 | ≦M8 | >M8 | ALL SIZE | ||||
COMMON MATERIALS | 1008 ~ 1015 | 1012 ~1017 | 10B21 / 1022 | 10B21 | 10B33 | 10B21 | 10B33 | 10B33 / SCM435/ML20MnTiB | SCM435 | |
ML08AL SWRCH8A~ SWRCH15A | SWRCH15A~ SWRCH18A | SWRCH22A | 35K |
|
35ACR | 10B35 |
|
AISI 4140 | ||
HEAT TREATMENT(YES/NO) | NO | YES |
Bolt: mechanical parts, with nuts cylindrical threaded fasteners.By the head and the screw (with external thread of the cylinder) of two parts of fasteners, to cooperate with nut, used for fastening the two parts with hole.This kind of connection form according to bolt connection.Such as screw the nut on the bolt, and can make the two parts separately, so the bolt connection is a detachable connection.
