Gangtong Zheli is China manufacturer & supplier who mainly produces DIN933 ASME B18.2.1 High Quaity Stainless Steel 304 316 316L A2 A4 Hex Bolt with many years of experience. Hope to build business relationship with you. Hex bolts come in two main categories: metric hex bolts and ASME hex bolts. These fasteners feature external male threads and are often confused with screws due to their threaded nature. Hex cap screws, with their hexagonal heads, are designed for wrench-driven installation. ASME B18.2.1-compliant hex cap screws have tighter tolerances for head height and shank length compared to hex bolts. This difference in tolerance ensures that ASME B18.2.1 hex cap screws fit where hex bolts are installed, but the reverse might not be true, as hex bolts may be slightly larger for hex cap screw applications.
We are a professional manufacturer dedicated to designing and producing fasteners tailored to our customers' specifications and performance requirements. Our commitment to quality is unwavering, with rigorous durability testing and precise technical design to extend the lifespan of our fasteners.
We offer cost-effective solutions, providing competitive prices through our professional factory supply. With a decade of experience, we can address a wide range of fastening needs and provide ideal solutions to solve your unique problems. We also offer customized fasteners, tailored to your specific requirements based on provided samples and drawings. Our fasteners are efficiently packaged in 25kg cartons, with 36-48 cartons per pallet for ease of handling. We operate from the port of Shanghai and offer flexible delivery options, including EXW, FOB, and CIF. Payment methods accepted include TT, L/C, West Union, and Paypal.
1:Metric Hex BOLT:GB/T 3098.1-2010,ISO898.1-2009 | ||||||||||
CLASS | 4.6;4.8 | 5.8 | 6.8 | 8.8 | 9.8 | 10.9 | 12.9 | |||
SIZE | ALL SIZE | ≦M12 | >M12 | ≦M8 | >M8 | ALL SIZE | ||||
COMMON MATERIALS | 1008 ~ 1015 | 1012 ~1017 | 10B21 / 1022 | 10B21 | 10B33 | 10B21 | 10B33 | 10B33 / SCM435/ML20MnTiB | SCM435 | |
ML08AL SWRCH8A~ SWRCH15A | SWRCH15A~ SWRCH18A | SWRCH22A | 35K |
|
35ACR | 10B35 |
|
AISI 4140 | ||
HEAT TREATMENT(YES/NO) | NO | YES | ||||||||
|
|
|
|
|
|
|
|
|
|
|
2:ASME Hex BOLT:SAE J429 | ||||||||||
CLASS | G1 | G2 | G5 | G5.2 | G8 | SK |
|
|
||
SIZE | ALL SIZE | ≦3/8 | >3/8 | ALL SIZE |
|
|
||||
COMMON MATERIALS | 1008 ~ 1015 ML08AL SWRCH8A~ SWRCH15A | 1017 | C(0.28~0.55) 10B33 or MEDIUM CARBON STEEL | C(0.15~0.25) or 10B21 | 10B33 or SCM435 | SCM435 |
|
|
||
|
|
|
|
|
|
|
||||
HEAT TREATMENT(YES/NO) | NO | YES |
|
|
Product Name |

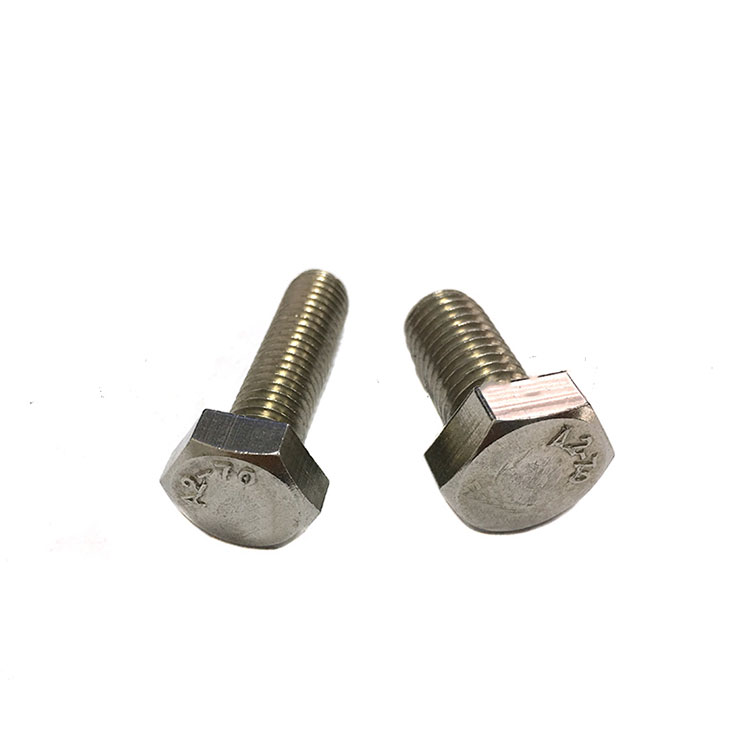

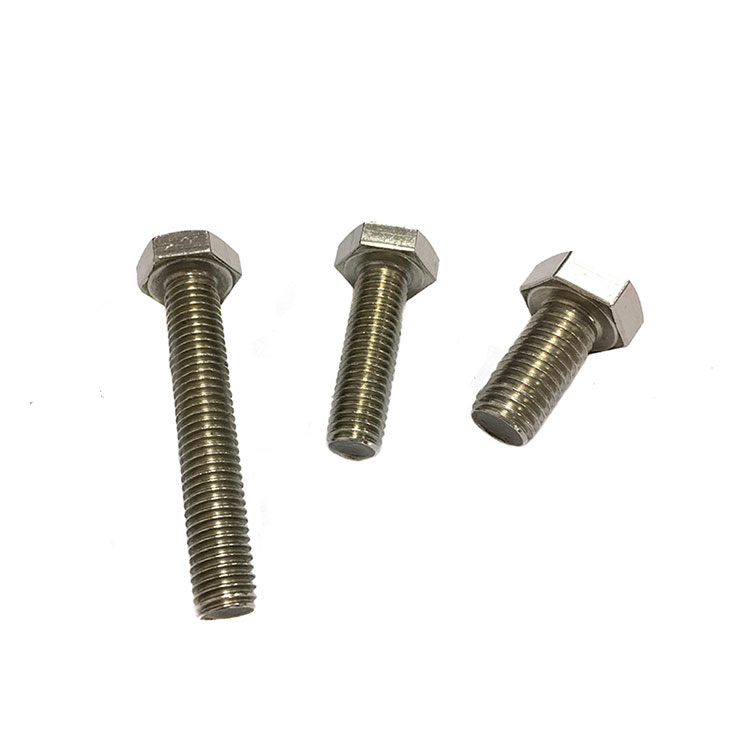

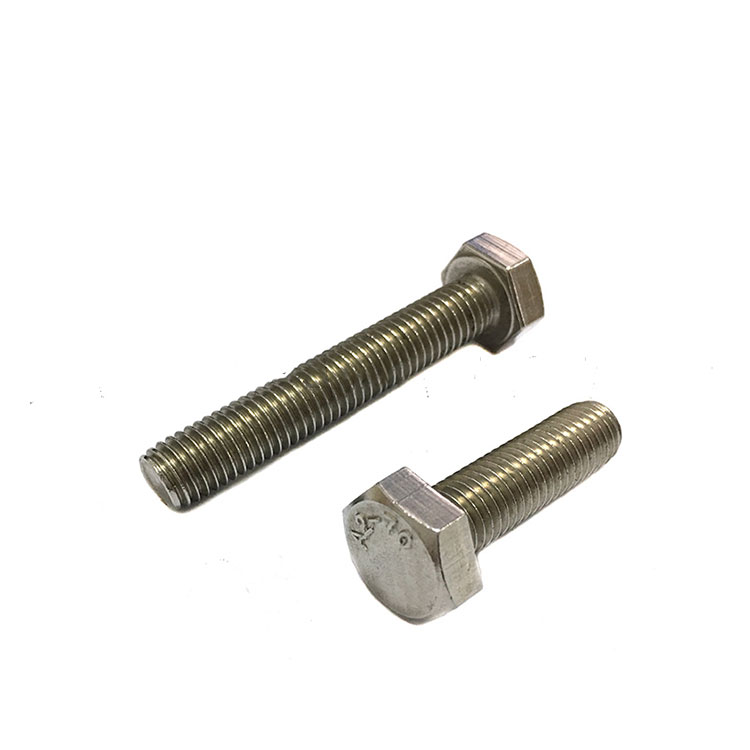

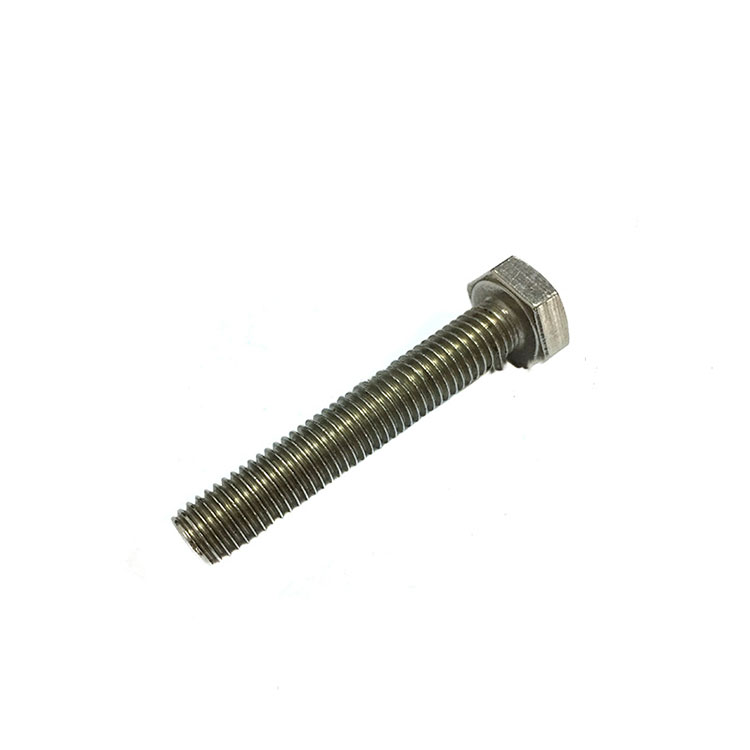

DIN933 ASME B18.2.1 High Quaity Stainless Steel 304 316 316L A2 A4 Hex Bolt |
||||||
Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB | ||||||
Material | Stainless Steel: SS201, SS303, SS304, SS316,SS316L,SS904L | ||||||
Stainless Steel 304 316 316L GrB8 B8M. Carbon Steel | |||||||
Finishing |
Zinc(Yellow,White,Blue,Black),Hop Dip Galvanized(HDG) phosphorization, Black Oxide,Geomet,Dacroment,anodization,Nickel plated,Zinc-Nickel plated |
||||||
Customized Products Lead time |
Busy season:15-25days,Slack seaon:10-15days | ||||||
Stock Products |
stainless steel screws, Example: ISO7380,DIN7981,DIN7982,DIN916,DIN913,DIN7985,DIN912 |
||||||
Get Free Samples for standard fastener from Gangtong Zheli Fastener |
Material | Mechanical Characteristics | |||
Reductin Of Area | Yield Point | Tensile Strength | Elongation | |
% | MPA | MPA | % | |
SS201 | ≥45 | ≥275 | ≥520 | 55~66 |
SS304 | ≥50 | ≥205 | ≥515 | ≥40 |
SS316 | ≥50 | ≥205 | ≥515 | ≥40 |
SS304L | ≥50 | ≥170 | ≥485 | ≥40 |
SS316L | ≥50 | ≥170 | ≥485 | ≥40 |
SS410 | ≥45 | ≥275 | ≥480 | ≥20 |
