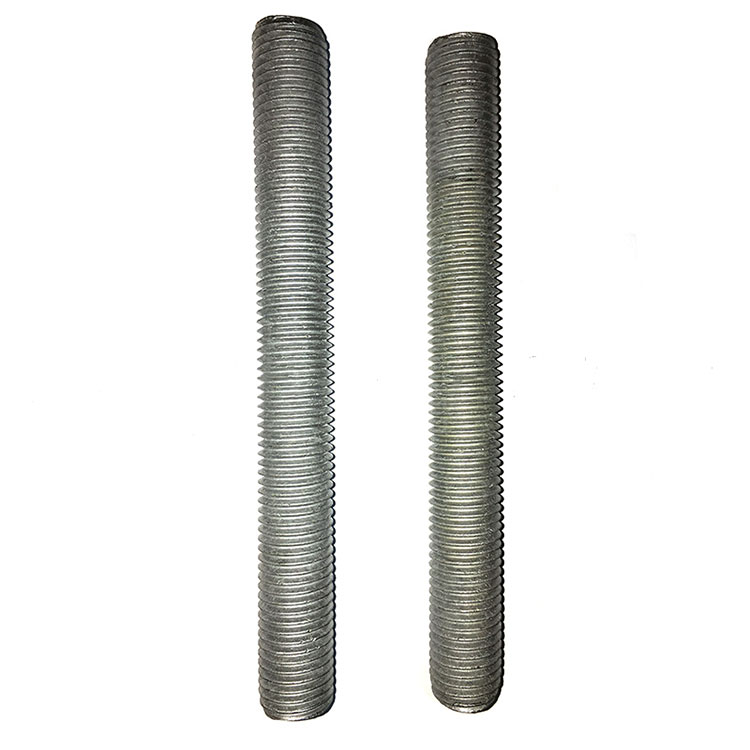

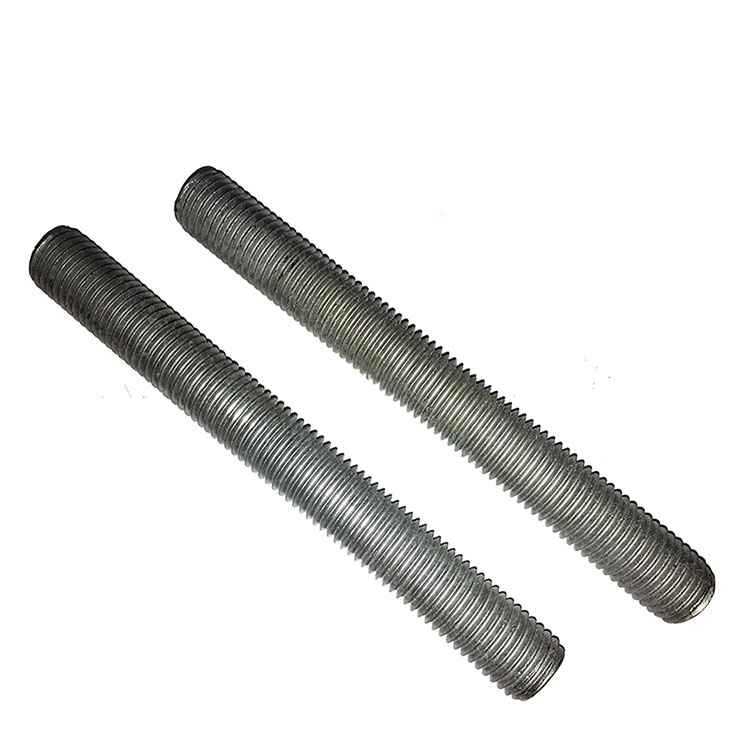

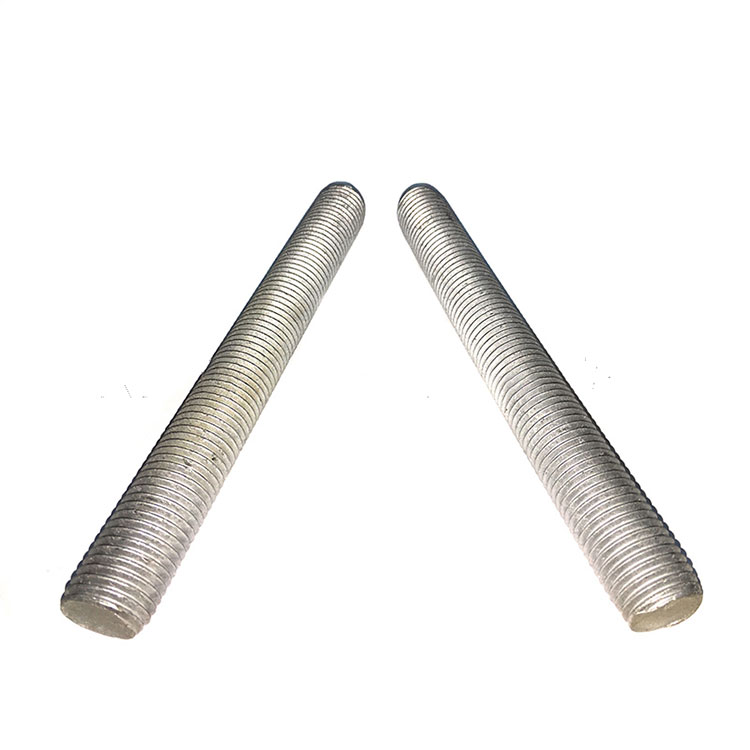

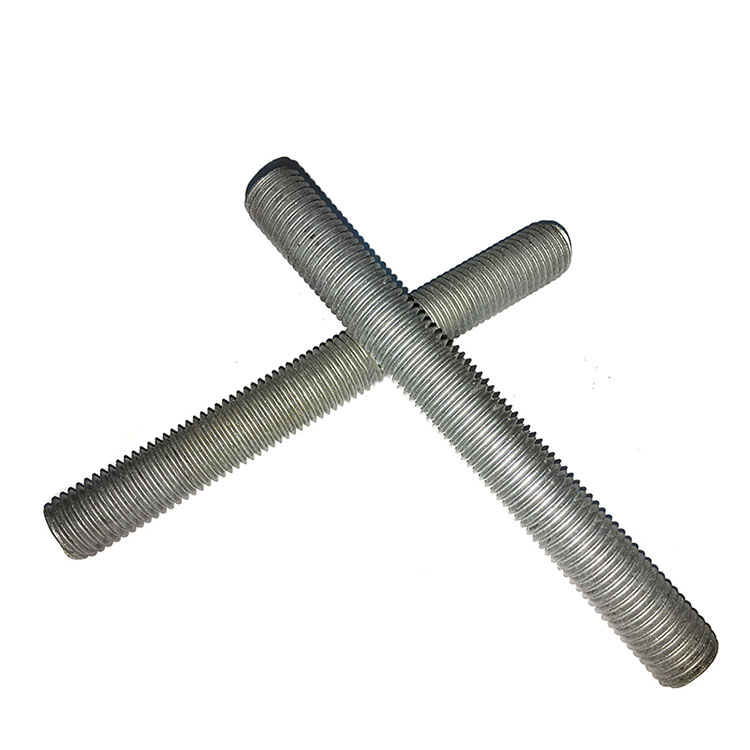

Gangtong Zheli is China manufacturer & supplier who mainly produces Grade 8.8 Carbon Steel HDG Full Threaded Rod DIN975 with many years of experience. Hope to build business relationship with you. The Grade 8.8 Carbon Steel HDG Full Threaded Rod DIN975 is a high-strength, fully threaded rod made from carbon steel. It is typically hot-dip galvanized (HDG) to provide corrosion resistance and durability. These threaded rods are used in various construction and industrial applications to create secure connections and anchor points. With a Grade 8.8 rating, they offer excellent tensile strength and are well-suited for structural and heavy-duty fastening purposes. The DIN975 standard specifies the dimensions and quality requirements for threaded rods, ensuring consistency and reliability in their use. Carbon Steel Threaded Rods are versatile fasteners widely used across various industries, including environmental protection, medical equipment, communications, electric power facilities, electronics, food machinery, petrochemical, ship assembly, pump valve, pipe, building curtain wall, and open spaces, demonstrating their broad applicability and importance in these sectors.
Carbon steel material including Q195 Q235 Q345 Q500 S35K C45Etc.
Material No. | C≤ | Si≤ | Mn≤ | P≤ | S≤ | Ti≤ |
Q195 | 0.12 | 0.3 | 0.5 | 0.035 | 0.04 | — |
Q235 | 0.22 | 0.35 | 1.4 | 0.04 | 0.05 | — |
Q275 | 0.24 | 0.35 | 1.5 | 0.45 | 0.05 | — |
Q345 | 0.2 | 0.5 | 1.7 | 0.035 | 0.035 | 0.2 |
Q500 | 0.18 | 0.6 | 1.8 | 0.03 | 0.025 | 0.2 |
Q550 | 0.18 | 0.6 | 1.8 | 0.03 | 0.03 | 0.2 |
Hot rolled wire rod - Dial (cold) - Spheroidizing annealing (softening) - mechanical descaling - acid - cold dial - - thread processing - heat treatment - Test
METRIC BOLT:GB/T 3098.1-2010,ISO898.1-2009 | ||||||||||
CLASS | 4.6;4.8 | 5.8 | 6.8 | 8.8 | 9.8 | 10.9 | 12.9 | |||
SIZE | ALL SIZE | ≦M12 | >M12 | ≦M8 | >M8 | ALL SIZE | ||||
COMMON MATERIALS | 1008 ~ 1015 | 1012 ~1017 | 10B21 / 1022 | 10B21 | 10B33 | 10B21 | 10B33 | 10B33 / SCM435/ML20MnTiB | SCM435 | |
ML08AL SWRCH8A~ SWRCH15A | SWRCH15A~ SWRCH18A | SWRCH22A | 35K |
|
35ACR | 10B35 |
|
AISI 4140 | ||
HEAT TREATMENT(YES/NO) | NO | YES |
