Hot Dip Galvanized Metric Steel U Bolt with Hex Nuts for Electric Power Iron Tower
New Products
Gr 8 Carbon steel High Tensile Black DIN6915 Hex Heavy Nuts
M6 M8 M10 Stock Carbon Steel White Blue Zinc Plated Long Nut Coupling Nut
ASTM 1/2" 3/8" 9/16" Gr2 Plain Lock Nut Hexagon Prevailing Torque Nuts
Galvanized Steel Zinc Plated Press Self Clinching Nut
Non-standard Carbon Steel Blue White Zinc Plated Flat Head Hex Neck Carriage Bolt- All new products

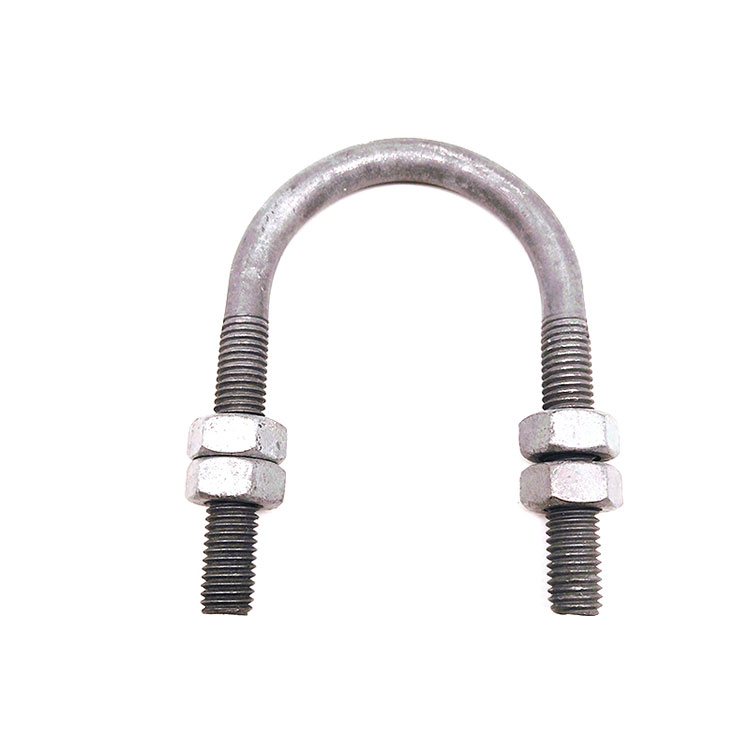

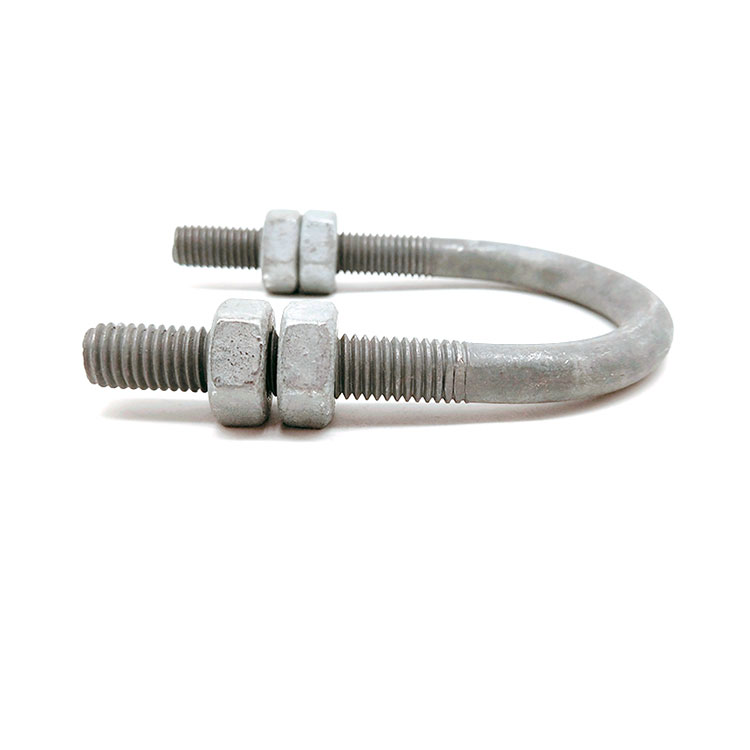

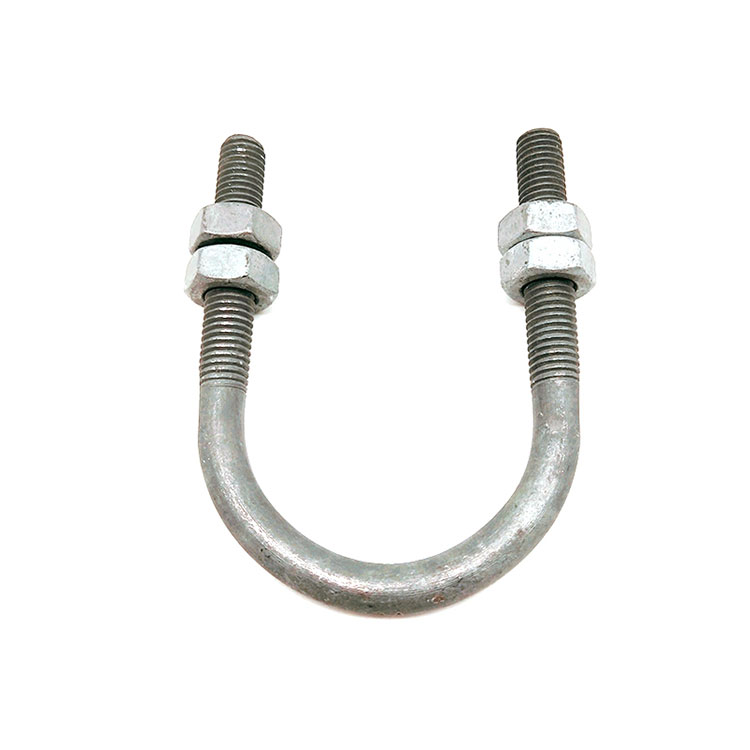

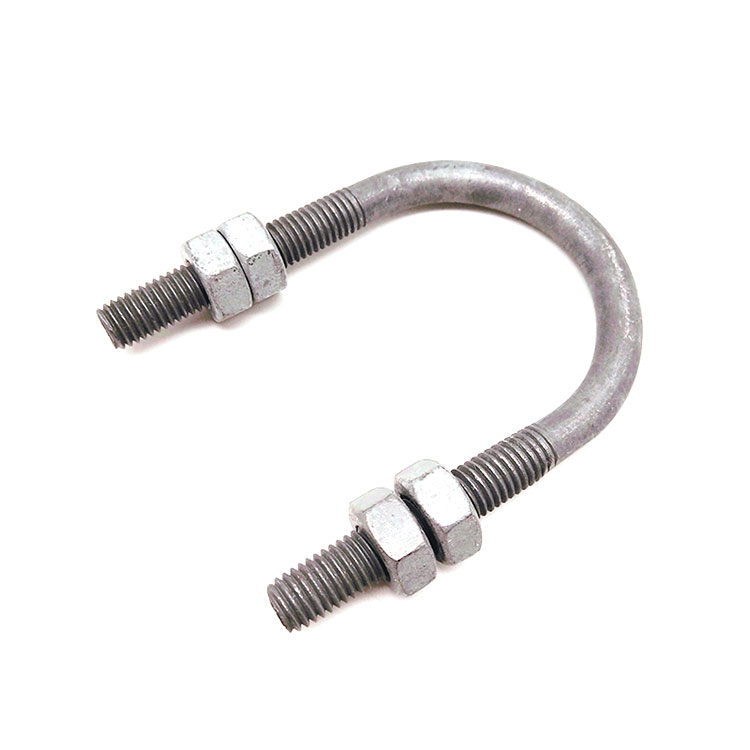

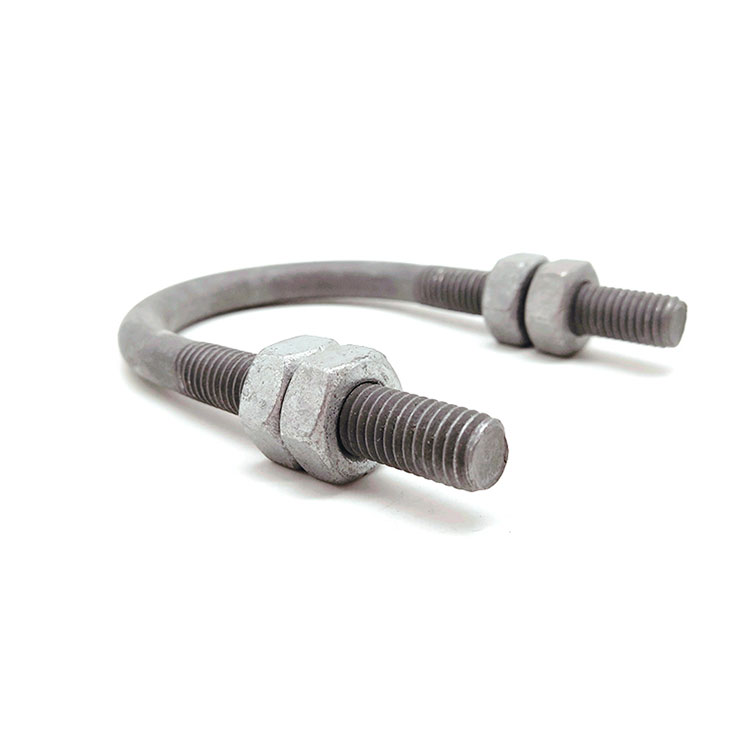

Hot Dip Galvanized Metric Steel U Bolt with Hex Nuts for Electric Power Iron Tower
Buy Hot Dip Galvanized Metric Steel U Bolt with Hex Nuts for Electric Power Iron Tower which is of high quality directly with low price.
type:U Bolt with nuts
material:carbon steel
Sample:Free
Package:Caton+Pallet
delivery time:10-30 days
finish:hot dip galvanized
Standard:GB, DIN,ANSI,GB,JIS,BSW,GOST
Send Inquiry
Product Description
We can provide professional service and better price for you. If you interested in Hot Dip Galvanized Metric Steel U Bolt with Hex Nuts for Electric Power Iron Tower products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.
Hot Dip Galvanized Metric Steel U Bolt with Hex Nuts for Electric Power Iron Tower
A U-bolt would be described by the size of pipe it was supporting. For example, a 40 Nominal Bore U-bolt would be asked for by pipe work engineers, and only they would know what that meant. In reality, the 40 nominal bore part bears little resemblance to the size and dimensions of the u-bolt.
| U-BOLT SPECIFICATIONS | ||||
| Thread Diameter | Width Between Legs | Inside Length | Thread Length | Pipe Size |
| 1/4"-20 | 3/4" | 1 1/4 | 3/4" | 3/8" |
| 1/4"-20 | 3/4" | 1 3/4 | 3/4" | 3/8" |
| 1/4"-20 | 3/4" | 2 1/4 | 1 1/2 | 3/8" |
| 1/4"-20 | 1" | 1 3/4 | 3/4" | 1/2" |
| 1/4"-20 | 1-1/8" | 2 | 3/4" | 3/4" |
| 1/4"-20 | 1-3/8" | 2 1/4 | 3/4" | 1" |
| 1/4"-20 | 1 3/4 | 2 3/4 | 1 | 1 1/4 |
| 1/4"-20 | 2 | 3 1/4 | 1 1/4 | 1 1/2 |
| 1/4"-20 | 1 1/2 | 3 1/2 | 2 | 1 |
| 5/16"-18 | 1 3/8 | 2 3/16 | 1 | 1 |
| 5/16"-18 | 1 3/8 | 3 11/16 | 1 1/2 | 1 |
| 5/16-18 | 1 3/4 | 2 11/16 | 1 | 1 1/4 |
| 5/16-18 | 2 | 2 11/16 | 1 | 1 1/2 |
| 5/16-18 | 2 | 3 11/16 | 1 1/2 | 1 1/2 |
| 5/16-18 | 2 1/2 | 3 3/16 | 1 1/2 | 2 |
| 3/8"-16 | 1 | 2 1/4 | 1 1/4 | 1/2" |
| 3/8"-16 | 1 3/8 | 3 1/8 | 1 1/2 | 1 |
| 3/8"-16 | 1 1/2 | 2 1/2 | 1 1/4 | 1 |
| 3/8"-16 | 2 | 3 1/8 | 1 1/4 | 1 1/2 |
| 3/8"-16 | 2 1/2 | 3 5/8 | 1 1/2 | 2 |
| 3/8"-16 | 3 | 4 1/8 | 1 1/2 | 2 1/2 |
| 3/8"-16 | 3 5/8 | 4 5/8 | 1 1/2 | 3 |
| 1/2"-13 | 3 | 4 1/2 | 1 1/2 | 2 1/2 |
| 1/2"-13 | 3.5 | 5 | 1 1/2 | 3 |
| 1/2"-13 | 4 | 5 1/2 | 1 1/2 | 3 1/2 |
| 1/2"-13 | 4.625 | 6 | 1 1/2 | 4 |
| 1/2"-13 | 5.625 | 7 | 2 | 5 |
| 1/2"-13 | 6.75 | 8 | 2 | 6 |
| 1/2"-13 | 8.75 | 10 3/8 | 2 | 8 |
| 5/8"-11 | 8.75 | 11 1/2 | 4 |
8 |
