Find a huge selection of Stainless Steel A4-80 SS304 SS316 DIN933 Hex Bolt from China at Gangtong Zheli. Provide professional after-sales service and the right price, looking forward to cooperation.

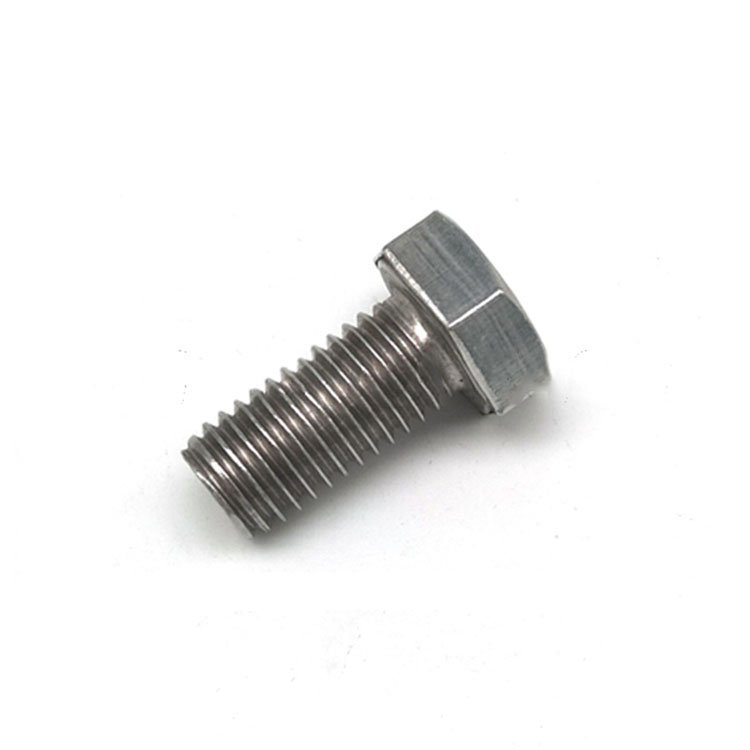

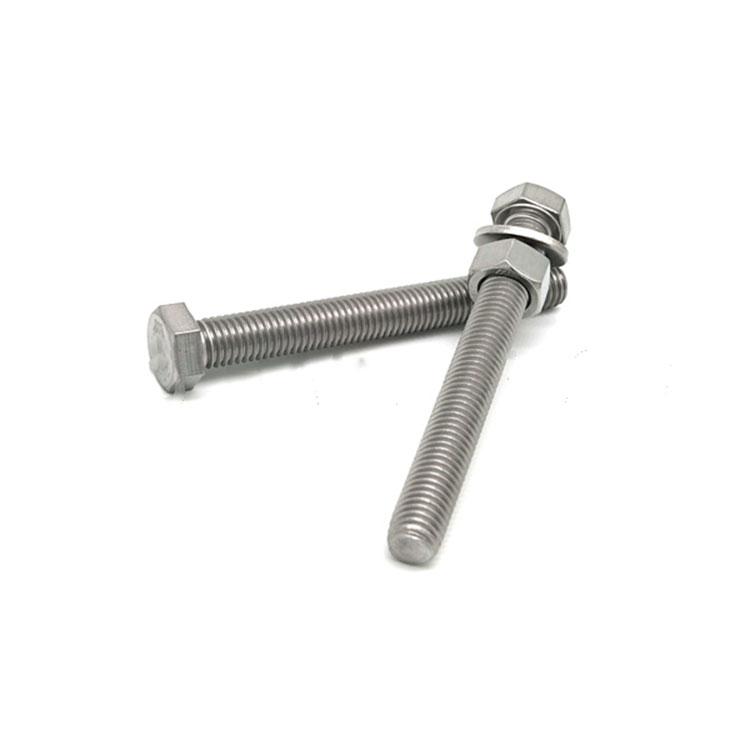

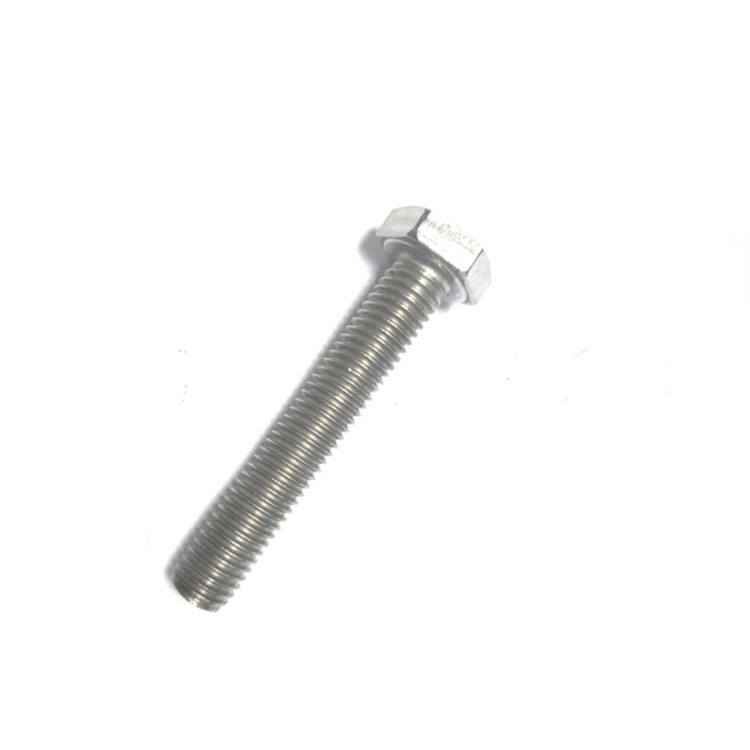

The hexagonal head stainless steel bolt consists of two distinct parts: the hexagonal head and the threaded screw. Stainless steel bolts are available in various materials such as SS304, SS316, 316L, and others. Our company boasts years of experience in international trade, exporting our products to diverse countries. Additionally, we offer customized solutions based on customer-provided drawings.
Bolt performance grades adhere to international standards and encompass a wide range of specifications. Bolts sharing the same performance grade exhibit uniform performance characteristics, irrespective of their material or source. These grades, such as 8.8 and 10.8 strength grades, indicate the shear stress levels of the bolts, quantified at 8.8 GPa and 10.8 GPa respectively, offering insights into their strength and reliability.
1:Metric Hex BOLT:GB/T 3098.1-2010,ISO898.1-2009 | ||||||||||
CLASS | 4.6;4.8 | 5.8 | 6.8 | 8.8 | 9.8 | 10.9 | 12.9 | |||
SIZE | ALL SIZE | ≦M12 | >M12 | ≦M8 | >M8 | ALL SIZE | ||||
COMMON MATERIALS | 1008 ~ 1015 | 1012 ~1017 | 10B21 / 1022 | 10B21 | 10B33 | 10B21 | 10B33 | 10B33 / SCM435/ML20MnTiB | SCM435 | |
ML08AL SWRCH8A~ SWRCH15A | SWRCH15A~ SWRCH18A | SWRCH22A | 35K |
|
35ACR | 10B35 |
|
AISI 4140 | ||
HEAT TREATMENT(YES/NO) | NO | YES | ||||||||
|
|
|
|
|
|
|
|
|
|
|
2:ASME Hex BOLT:SAE J429 | ||||||||||
CLASS | G1 | G2 | G5 | G5.2 | G8 | SK |
|
|
||
SIZE | ALL SIZE | ≦3/8 | >3/8 | ALL SIZE |
|
|
||||
COMMON MATERIALS | 1008 ~ 1015 ML08AL SWRCH8A~ SWRCH15A | 1017 | C(0.28~0.55) 10B33 or MEDIUM CARBON STEEL | C(0.15~0.25) or 10B21 | 10B33 or SCM435 | SCM435 |
|
|
||
|
|
|
|
|
|
|
||||
HEAT TREATMENT(YES/NO) | NO | YES |
|
|
Product Name |
Stainless Steel A4-80 SS304 SS316 DIN933 Hex Bolt |
||||||
Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB | ||||||
Material | Stainless Steel: SS201, SS303, SS304, SS316,SS316L,SS904L | ||||||
Stainless Steel 304 316 316L GrB8 B8M. Carbon Steel | |||||||
Finishing |
Zinc(Yellow,White,Blue,Black),Hop Dip Galvanized(HDG) phosphorization, Black Oxide,Geomet,Dacroment,anodization,Nickel plated,Zinc-Nickel plated |
||||||
Customized Products Lead time |
Busy season:15-25days,Slack seaon:10-15days | ||||||
Stock Products |
stainless steel screws, Example: ISO7380,DIN7981,DIN7982,DIN916,DIN913,DIN7985,DIN912 |
||||||
Get Free Samples for standard fastener from Gangtong Zheli Fastener | |||||||
For more information visit: |
Environmental protection equipment, medical equipment, communications equipment, electric power facilities, electronic products, food machinery, petrochemical industry, ship assembly, pump valve, pipe, building curtain wall, Buildings, machanical equipments, bridges, tunnels, high speed railways etc
