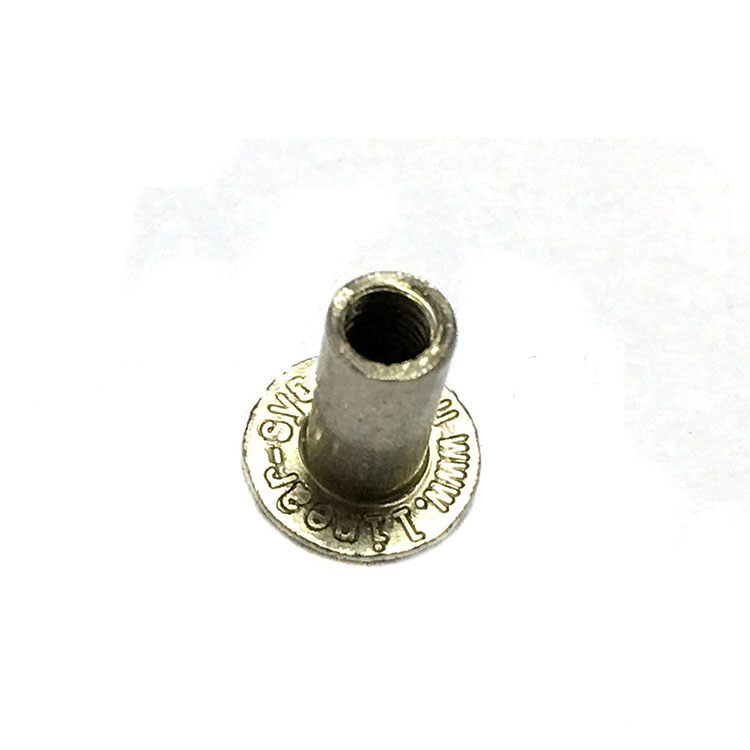

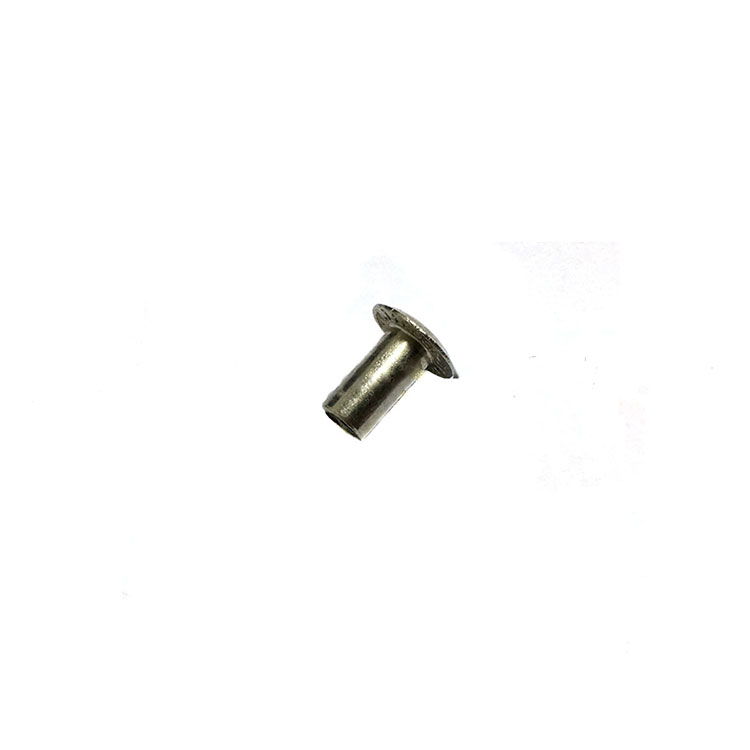

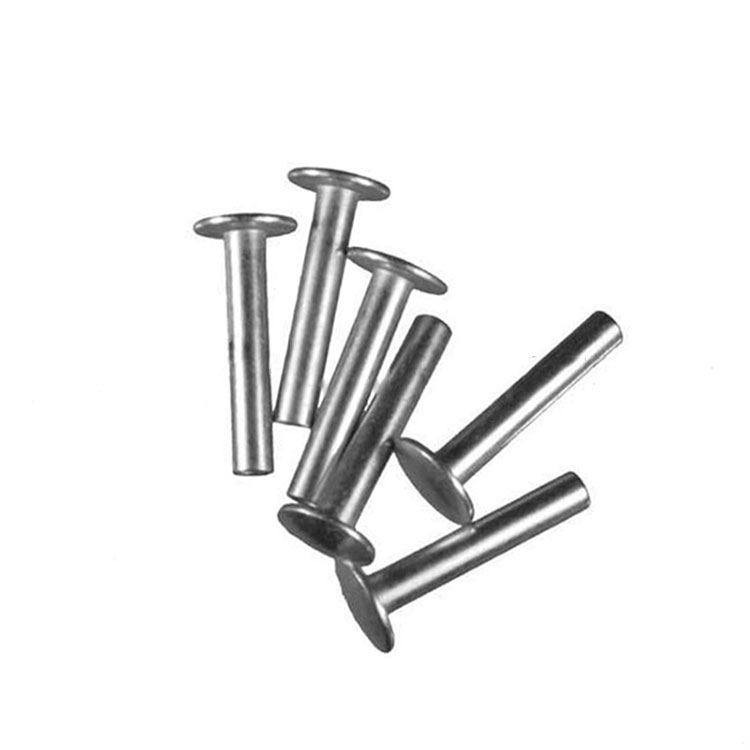

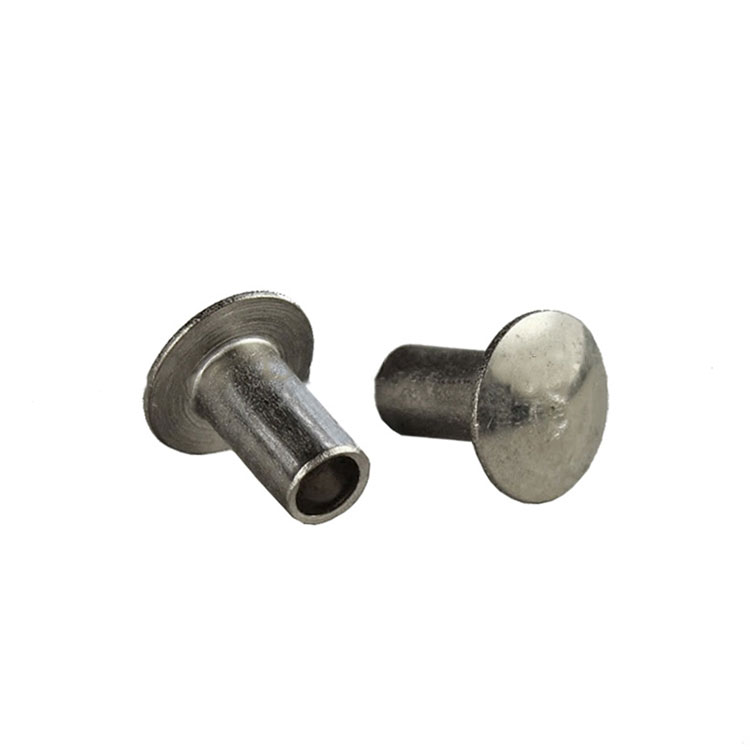

Gangtong Zheli is China manufacturer & supplier who mainly produces Stainless Steel Flat Head Semi-Tubular Rivets for Furniture with many years of experience. Hope to build business relationship with you. Semi-tubular rivets, also referred to as tubular rivets, share similarities with solid rivets but feature a distinctive characteristic – a partial hole at the tip. This partial hole serves the purpose of reducing the force required during the application process by allowing the tubular section to deform outward. Applying a semi-tubular rivet typically demands only about a quarter of the force needed for a solid rivet.
Tubular rivets are versatile and can serve as pivot points, particularly in situations where movement is desired. This is because the expansion or swelling of the rivet occurs solely at the tail, making it an ideal choice for applications that require pivot points or joints where movement is preferred.
Products name |
Nuts(Hex Nut,Heavy hex nut,Flange nut,Nylon lock nut, Weld nut Cap nut,Cage nut,Wing nut) |
||||||
Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB | ||||||
Material | Stainless Steel: SS201, SS303, SS304, SS316,SS316L,SS904L ,F594 | ||||||
Steel Grade: DIN: Gr.4,5,6,8.8,10,; SAE: Gr.2,5,8; ASTM: A563 | |||||||
Finishing |
Zinc(Yellow,White,Blue,Black),Hop Dip Galvanized(HDG),Black Oxide, Geomet,Dacroment,anodization,Nickel plated,Zinc-Nickel plated |
||||||
Production Process |
M2-M24:Cold Froging,M24-M100 Hot Forging, Machining and CNC for Customized fastener |
||||||
Customized Products Lead time |
Busy season:15-30days,Slack seaon:10-15days | ||||||
Stock Products |
Carbon steel:DIN934,DIN6923,DIN928,DIN929,ISO4032,Cage nut,Cap nut Stainless steel: All DIN Or GB Standard stainless steel Nut |
||||||
Get Free Samples for standard fastener from Gangtong Zheli Fastener | |||||||
For more information visit: www.gtzlfastener.com |
Nominal Shank Diameter | Shank Diameter D | Head Style | Head Diameter A | Head Thickness H | Hole Diameter B | Hole Depth C | Suggested Clinch Allowance | Hole Dia. in Assembly | ||||
Min. | Max. | Basic | Tol. | Basic | Tol. | Min. | Max | |||||
1/16 | 0.058 | 0.061 | Oval | 0.109 | ± .005 | 0.017 | ± .002 | 0.039 | 0.044 | 0.046 | 0.04 | 0.067 |
1/16 | 0.058 | 0.061 | Truss | 0.125 | ± .005 | 0.017 | ± .002 | 0.039 | 0.044 | 0.046 | 0.04 | 0.067 |
3/32 | 0.085 | 0.089 | Oval | 0.147 | ± .005 | 0.023 | ± .003 | 0.062 | 0.068 | 0.064 | 0.045 | 0.093 |
3/32 | 0.085 | 0.089 | Truss | 0.187 | 0.005 | 0.023 | ± .003 | 0.062 | 0.068 | 0.064 | 0.045 | 0.093 |
3/32 | 0.095 | 0.099 | Oval | 0.156 | ± .005 | 0.023 | ± .003 | 0.07 | 0.076 | 0.077 | 0.05 | 0.1 |
3/32 | 0.095 | 0.099 | Truss | 0.187 | ± .005 | 0.029 | ± .003 | 0.07 | 0.076 | 0.077 | 0.05 | 0.1 |
