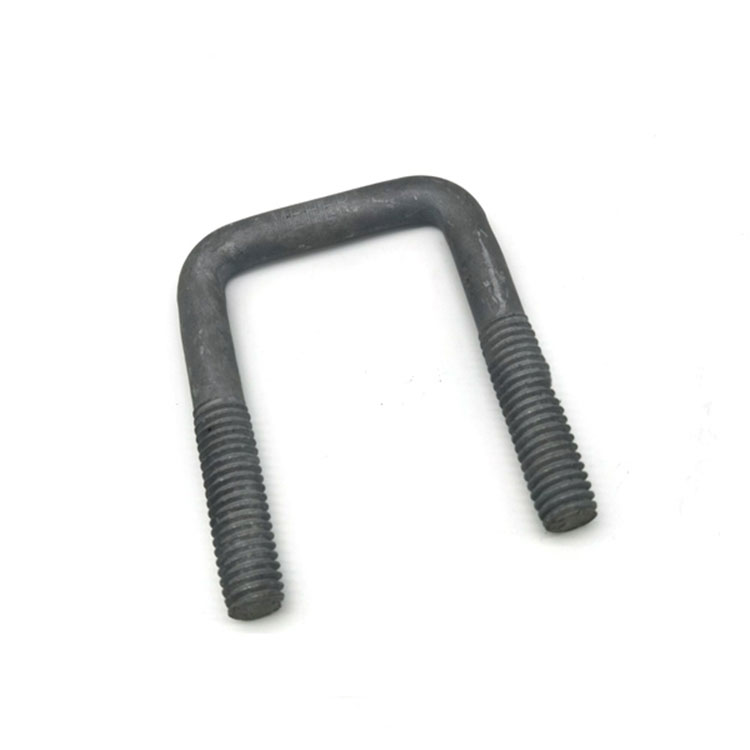

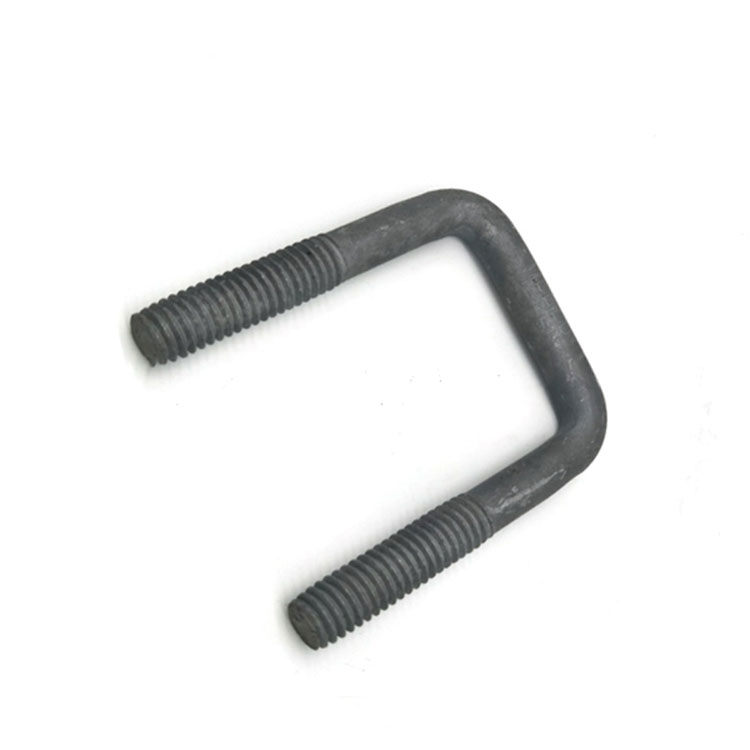

DIN 3570 hot-dip galvanized square U-bolt

High quality DIN 3570 hot-dip galvanized square U-bolt is offered by China manufacturer Gangtong Zheli. Welcome new and old customers to continue to cooperate with us to create a better future!
Hot-dip galvanized square U-bolts are important parts in industrial parts. Although they are small parts, improper use can have serious consequences and play a large role in industrial production and processing.

It is divided into many different models and types, these different varieties are designed to meet different industrial needs.

Send Inquiry

Product Description

Find a huge selection of DIN 3570 hot-dip galvanized square U-bolt from China at Gangtong Zheli. Provide professional after-sales service and the right price, looking forward to cooperation. The DIN 3570 hot-dip galvanized square U-bolt is a specialized fastener engineered to meet quality standards, featuring a square design and a durable galvanized finish, making it well-suited for a range of industrial and construction applications requiring robust and corrosion-resistant fastening solutions.

DIN 3570 hot-dip galvanized square U-bolt

The U-bolt, also known as a riding bolt due to its shape resembling a person on a horse, is a custom-designed fastening component. It features a U-shaped design with threaded ends that can be paired with nuts for secure fastening. Primarily, it is utilized for securing tubular items like water pipes or flat materials such as car plates.

The square U-bolt serves a diverse range of purposes, including fixing various equipment, securing steel structure foundations, installing street lamps, mounting traffic signs, affixing pumps and boilers, and pre-embedding heavy equipment for stabilization.

These U-bolts come in different types and sizes, ranging from M16-1000, M20-M52, to M4-M48, catering to various applications. They can be manufactured using materials such as stainless steel, carbon steel, copper, or nylon, offering different strength grades like 4.8, 6.8, 8.8, 10.9, 12.9. Additionally, surface treatments like natural finish, galvanization, nickel plating, chrome plating, or Crowe plating are available to enhance their durability and corrosion resistance.



DIN 3570 hot-dip galvanized square U-bolt drawing


U-BOLT SPECIFICATIONS
Thread Diameter Width Between Legs Inside Length Thread Length Pipe Size
1/4"-20 3/4" 1 1/4 3/4" 3/8"
1/4"-20 3/4" 1 3/4 3/4" 3/8"
1/4"-20 3/4" 2 1/4 1 1/2 3/8"
1/4"-20 1" 1 3/4 3/4" 1/2"
1/4"-20 1-1/8" 2 3/4" 3/4"
1/4"-20 1-3/8" 2 1/4 3/4" 1"
1/4"-20 1 3/4 2 3/4 1 1 1/4
1/4"-20 2 3 1/4 1 1/4 1 1/2
1/4"-20 1 1/2 3 1/2 2 1
5/16"-18 1 3/8 2 3/16 1 1
5/16"-18 1 3/8 3 11/16 1 1/2 1
5/16-18 1 3/4 2 11/16 1 1 1/4
5/16-18 2 2 11/16 1 1 1/2
5/16-18 2 3 11/16 1 1/2 1 1/2
5/16-18 2 1/2 3 3/16 1 1/2 2
3/8"-16 1 2 1/4 1 1/4 1/2"
3/8"-16 1 3/8 3 1/8 1 1/2 1
3/8"-16 1 1/2 2 1/2 1 1/4 1
3/8"-16 2 3 1/8 1 1/4 1 1/2
3/8"-16 2 1/2 3 5/8 1 1/2 2
3/8"-16 3 4 1/8 1 1/2 2 1/2
3/8"-16 3 5/8 4 5/8 1 1/2 3
1/2"-13 3 4 1/2 1 1/2 2 1/2
1/2"-13 3.5 5 1 1/2 3
1/2"-13 4 5 1/2 1 1/2 3 1/2
1/2"-13 4.625 6 1 1/2 4
1/2"-13 5.625 7 2 5
1/2"-13 6.75 8 2 6
1/2"-13 8.75 10 3/8 2 8
5/8"-11 8.75 11 1/2 4 8
