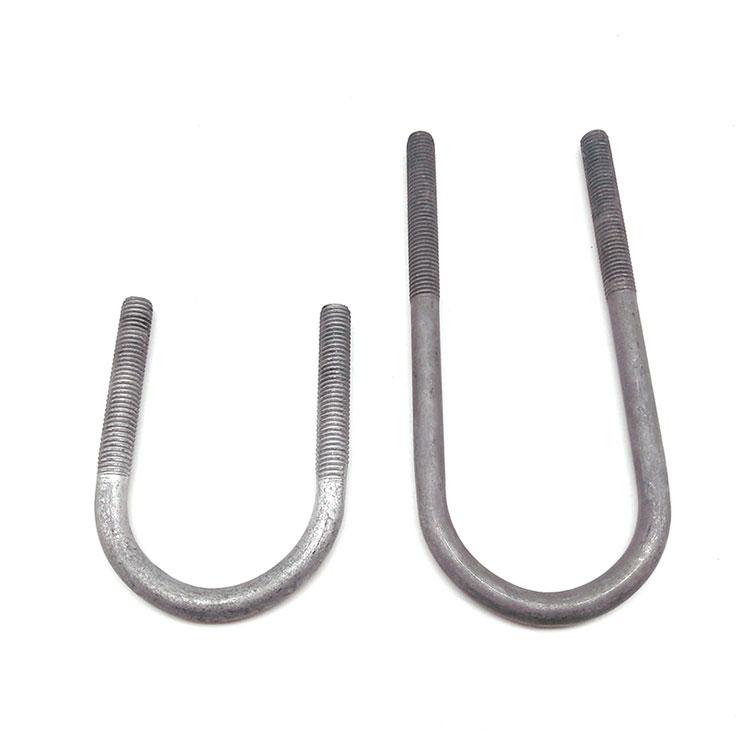

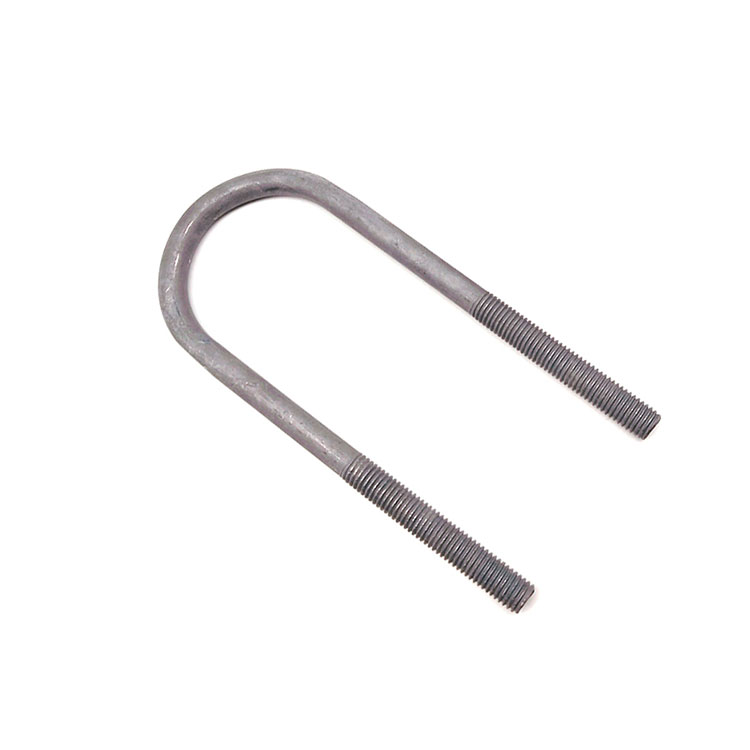

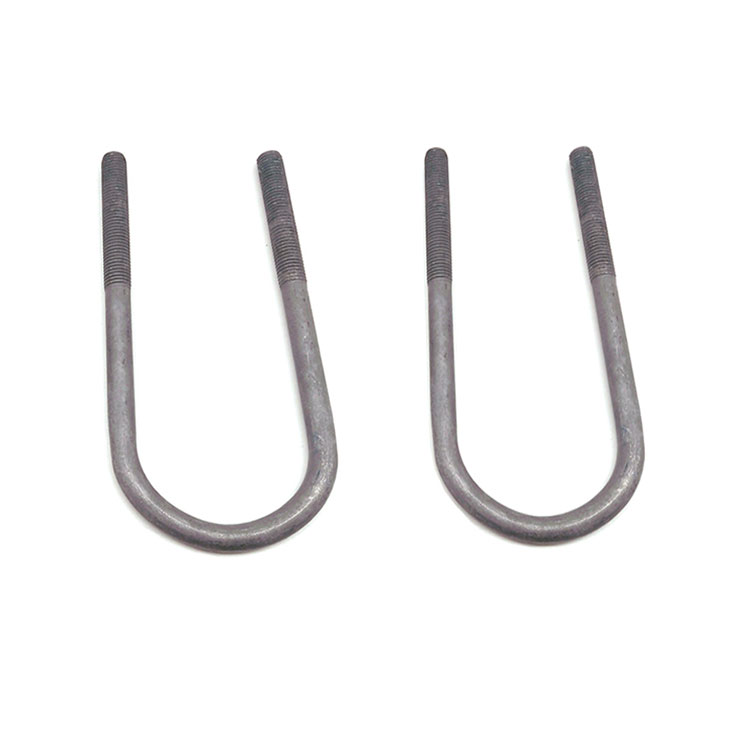

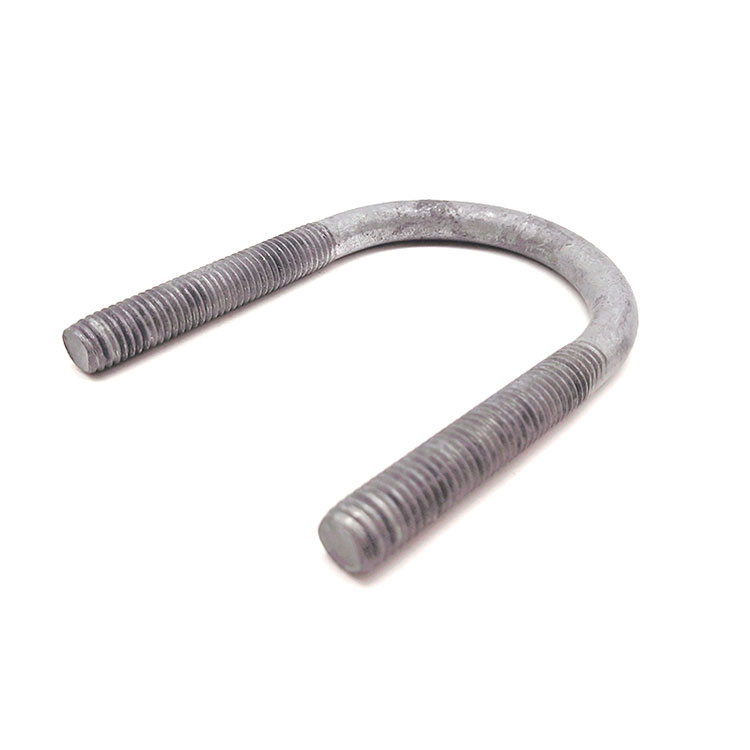

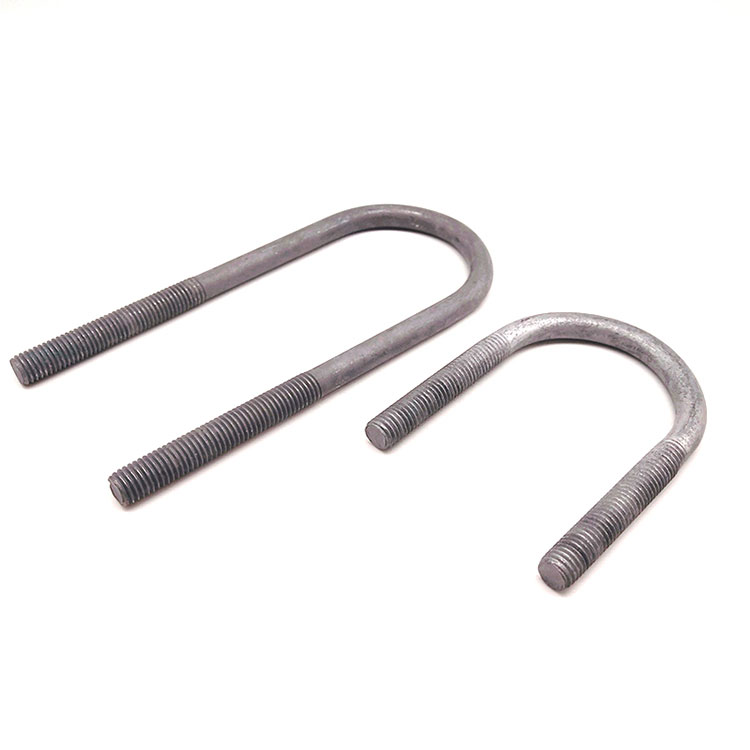

We can provide professional service and better price for you. If you interested in Grade 2/5 galvanized carbon steel U bolt for tower and hardware of transimission lines products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service. The Grade 2/5 galvanized carbon steel U-bolt is specifically designed for use in tower and hardware applications within transmission lines. Constructed from carbon steel, these U-bolts come in Grade 2 and Grade 5 variants, signifying their different strength levels. The galvanized coating applied to these U-bolts enhances their resistance to corrosion, making them well-suited for outdoor applications and environments with varying weather conditions commonly encountered in transmission line infrastructure. These U-bolts are instrumental in providing sturdy and reliable support for hardware and structures within transmission lines. They are used to fasten and secure various components, contributing to the stability and functionality of the transmission line infrastructure. Selecting the appropriate grade and size of U-bolt is critical to ensure proper and secure fastening of tower and hardware elements in transmission line installations.
A U-bolt would be described by the size of pipe it was supporting. For example, a 40 Nominal Bore U-bolt would be asked for by pipe work engineers, and only they would know what that meant.
U-BOLT SPECIFICATIONS | ||||
Thread Diameter | Width Between Legs | Inside Length | Thread Length | Pipe Size |
1/4"-20 | 3/4" | 1 1/4 | 3/4" | 3/8" |
1/4"-20 | 3/4" | 1 3/4 | 3/4" | 3/8" |
1/4"-20 | 3/4" | 2 1/4 | 1 1/2 | 3/8" |
1/4"-20 | 1" | 1 3/4 | 3/4" | 1/2" |
1/4"-20 | 1-1/8" | 2 | 3/4" | 3/4" |
1/4"-20 | 1-3/8" | 2 1/4 | 3/4" | 1" |
1/4"-20 | 1 3/4 | 2 3/4 | 1 | 1 1/4 |
1/4"-20 | 2 | 3 1/4 | 1 1/4 | 1 1/2 |
1/4"-20 | 1 1/2 | 3 1/2 | 2 | 1 |
5/16"-18 | 1 3/8 | 2 3/16 | 1 | 1 |
5/16"-18 | 1 3/8 | 3 11/16 | 1 1/2 | 1 |
5/16-18 | 1 3/4 | 2 11/16 | 1 | 1 1/4 |
5/16-18 | 2 | 2 11/16 | 1 | 1 1/2 |
5/16-18 | 2 | 3 11/16 | 1 1/2 | 1 1/2 |
5/16-18 | 2 1/2 | 3 3/16 | 1 1/2 | 2 |
3/8"-16 | 1 | 2 1/4 | 1 1/4 | 1/2" |
3/8"-16 | 1 3/8 | 3 1/8 | 1 1/2 | 1 |
3/8"-16 | 1 1/2 | 2 1/2 | 1 1/4 | 1 |
3/8"-16 | 2 | 3 1/8 | 1 1/4 | 1 1/2 |
3/8"-16 | 2 1/2 | 3 5/8 | 1 1/2 | 2 |
3/8"-16 | 3 | 4 1/8 | 1 1/2 | 2 1/2 |
3/8"-16 | 3 5/8 | 4 5/8 | 1 1/2 | 3 |
1/2"-13 | 3 | 4 1/2 | 1 1/2 | 2 1/2 |
1/2"-13 | 3.5 | 5 | 1 1/2 | 3 |
1/2"-13 | 4 | 5 1/2 | 1 1/2 | 3 1/2 |
1/2"-13 | 4.625 | 6 | 1 1/2 | 4 |
1/2"-13 | 5.625 | 7 | 2 | 5 |
1/2"-13 | 6.75 | 8 | 2 | 6 |
1/2"-13 | 8.75 | 10 3/8 | 2 | 8 |
5/8"-11 | 8.75 | 11 1/2 | 4 |
8 |
