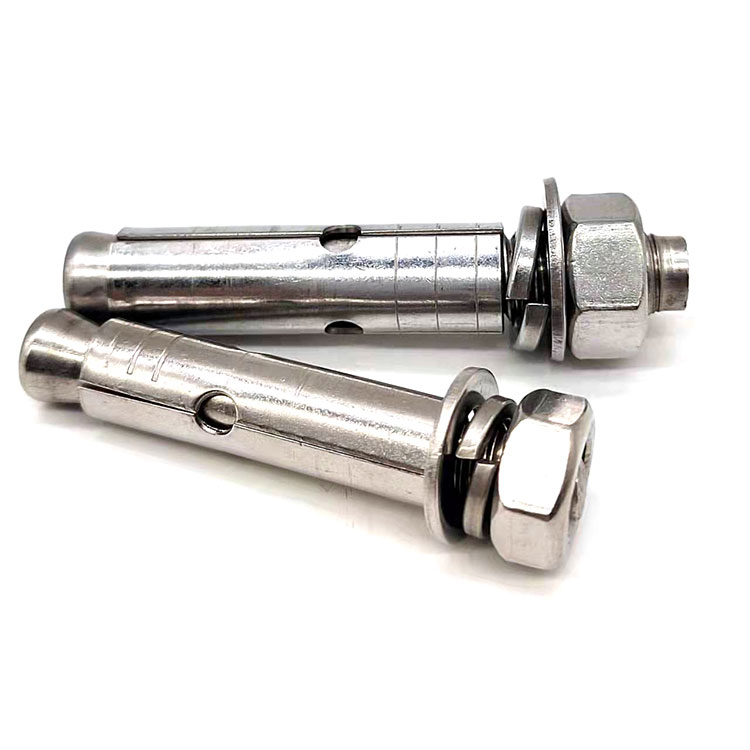

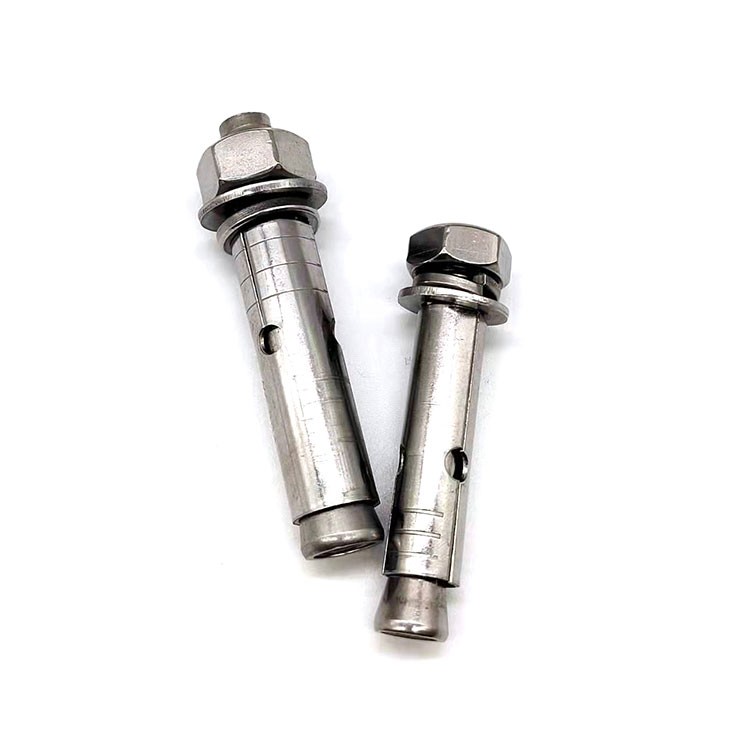

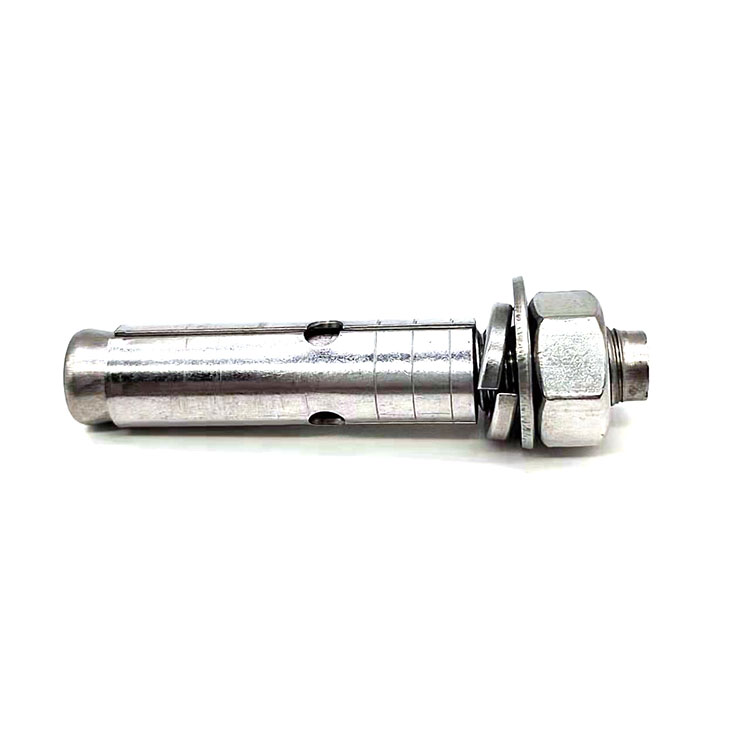

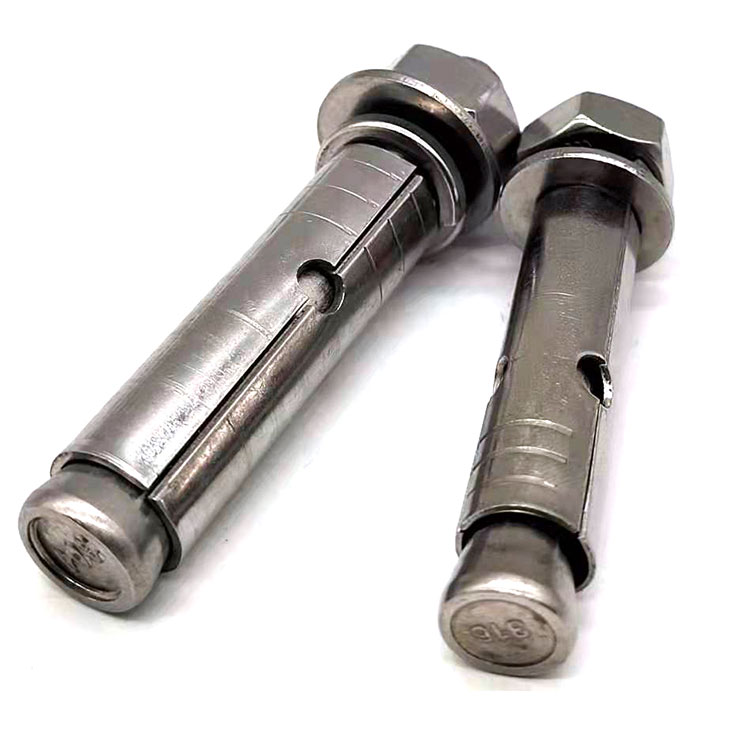

Stainless Steel Expansion Anchor Bolt

Product Description：

When in use, it is necessary to drill a hole of corresponding size on the fixed body with an impact electric drill (hammer), and then put the bolt and expansion tube into the hole, and tighten the nut to make the bolt, expansion tube, installation part and the fixed body expansion into one.

Tighten the expansion of the will, bolt tail has a big head, bolt set outside a slightly larger than the diameter of a bolt circle tube, and the tail part that there are a few openings, when after the bolt tightening, the bulk of the tail was brought to the opening of the pipe, the pipe burst, achieve the purpose of expansion, and then put the bolt fixed on the ground or walls, achieve the purpose of rooting.

Product Name	Stainless Steel Expansion Anchor Bolt
Standard:	DIN,ASTM/ANSI, JIS, EN ISO,AS,GB
Material	Stainless Steel: SS304, SS316
Finishing	Polishing,Zinc(Yellow,White,Blue-white,Black),Hop Dip Galvanized(HDG),Phosphating,Black Oxide,Geomet,Dacromet,Nickel plated, Zinc-Nickel plated
Products Range	Stainless steel: All DIN ,GB Standard and part ASNI standard stainless steel screws, Example: DIN603,DIN933/931,DIN6921,DIN3570,DIN7981,DIN7982,DIN7985,DIN916,DIN913,DIN7985,DIN912

Pictures：

Our service：

Professional Manufacturer: All of our Fastener are designed and manufactured according to buyers' specification and performance.

Quality is guaranteed: Durability testing and critical technical design to enhance fasteners lifetime.

Cost effective: Wide range of parts selection , Competitive prices with professional factory supply.

Customized ideal Fasteners: customized services according to the samples and drawing offered.

Production process:

Carriage Bolts have a square shoulder under a round head and are used with a nut and washer.
· The shoulder of the carriage bolt pulls into the wood when tightening and prevents the bolt from turning
· Bolt length is measured from under the head of the to the tip of the bolt
· Carriage bolt lengths of 4" and shorter are fully threaded
· Depending upon the manufacturer, stainless steel carriage bolts over 4" may be fully threaded or have a smooth 2" or more between the head and beginning of threading
· Our stainless steel carriage bolts are available in both 18-8 and Type 316 stainless steel (for salt water exposure)

The design of carriage bolts allows you to install the fastener without a helping hand. Below the half-round head of a carriage bolt sits a squared shoulder. When you drill a hole through material sized for the bolt, the head of the bolt will remain in place while you tighten the fastener onto the material. Using a hole too large for the bolt will result in the bolt head spinning in the material. This will not allow the carriage bolt to tighten in the material.
When joining pieces of wood together using a carriage bolt, the square head on the bolt can become stripped in the hole, making them hard to tighten. To solve this problem, insert a few finishing nails in the hole beside the bolt before hammering the bolt into place. The nails will fill the gaps between the hole and bolt to keep it from spinning.
Do not drill the holes bigger in the wood parts. The idea with carriage bolts is that you pound them in with a hammer so that the square part under the head of the bolt is forced down into the tight hole in the wood. This provides the hold to a) keep the bolt in place during assembly and b) to keep the bolt from turning while using a wrench or socket to tighten the nut from the end of the bolt.
Carriage bolts are designed so that on one side of an assembly that there are no protruding bits for things to catch on. The rounded head will provide that as opposed to there being a hex or square head sticking out. In your case with a chair kit the general idea is that the heads of the carriage bolts should face toward the side of the chair where the user will be. As such the threaded bolt ends will want to be down underneath or toward a generally non used surface of the chair.
