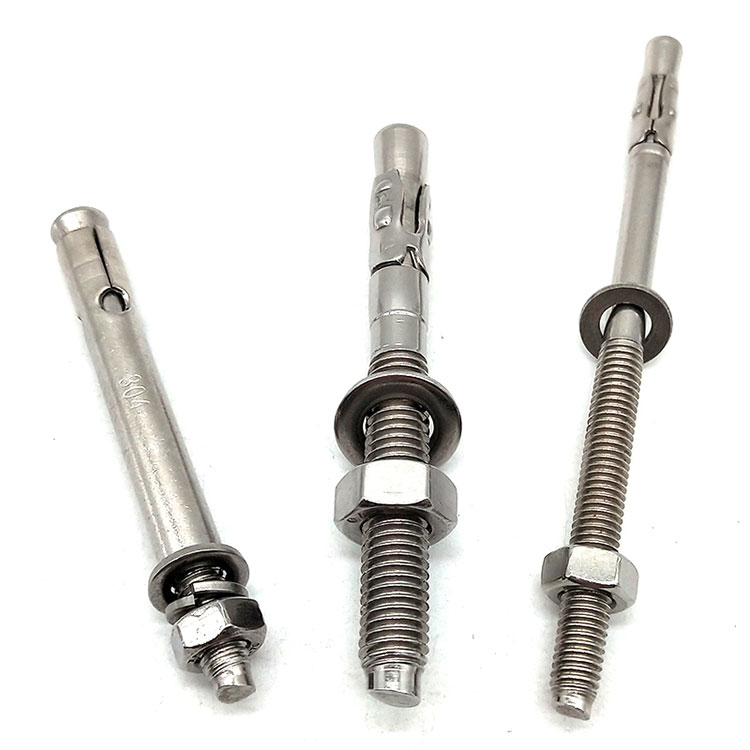

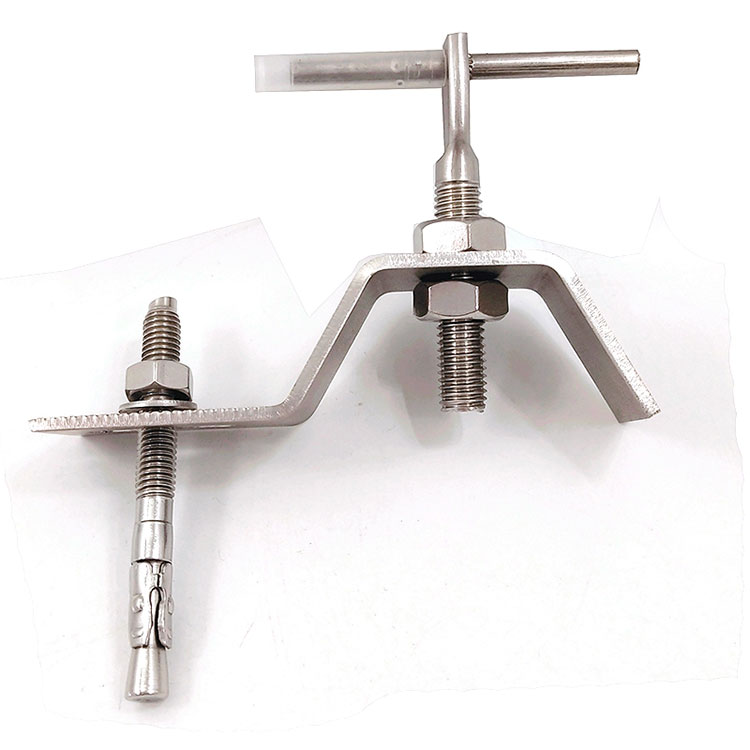

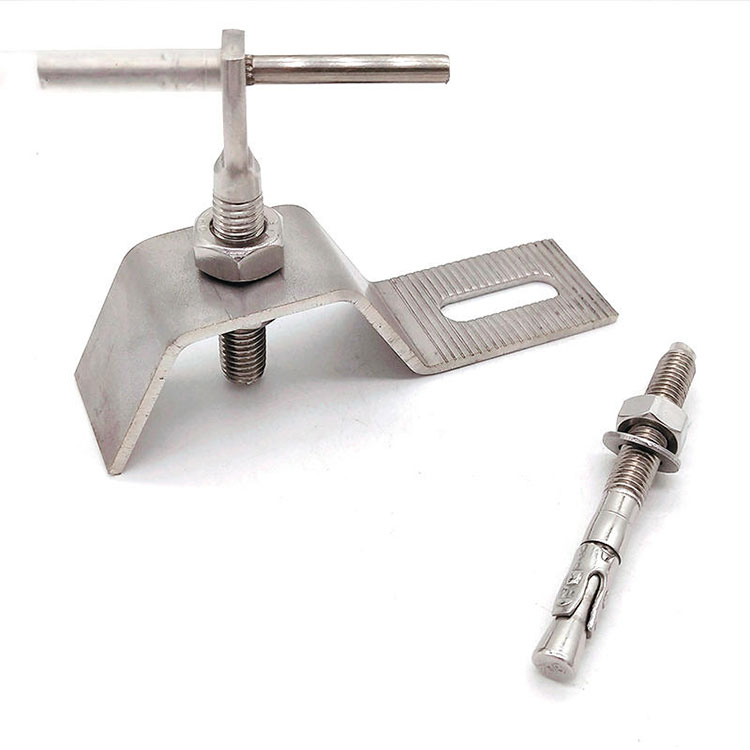

Find a huge selection of Stainless Steel Sleeve Anchor Curtain Wall Wedge Anchor for Stone Cladding Marble Angle Fixing from China at Gangtong Zheli. Provide professional after-sales service and the right price, looking forward to cooperation.
This product has long thread and is easy to install. It is usually used in heavy load facilities.
To get a reliable, huge tightening force, you have to make sure that the clip ring that's attached to the gecko is fully inflated.
And the expansion clip ring should not fall off the rod or distort in the hole.
The calibrated tension values were all tested under the condition of cement strength 260~300kgs/cm2, and the maximum safety load should not exceed 25% of the calibrated value.
Suitable for concrete and dense natural stone, metal structure, metal profile, bottom plate, support plate, bracket, baluster, window, curtain wall, machine, girder, girder, bracket, etc.
1. Anchors are fixed directly on to concrete walls with expansion bolts.
2. In horizontal joint installation slabs are pinned on the bottom and upper sides. Anchors act as load bearing carrying half.
3. The weight of the slabs above. Anchors also act as restraint holding the slabs below and restraining against wind suction and pressure.
4. In vertical joints installation slabs are pinned at the left and right sides. Anchors on the bottom are load-bearing anchors carrying the whole weight of the slab.
Half the weight of the slab on the left and half the weight of the slab on the right. Anchors on the top are restraint anchors holding the slabs and restraining against wind suction and pressure.
Products name | Stainless Steel Sleeve Anchor Curtain Wall Wedge Anchor for Stone Cladding Marble Angle Fixing | ||||||
Standard: |
DIN,ASTM/ASME,JIS,EN,ISO,AS,GB |
||||||
Material |
Stainless Steel: SS304, SS316; Aluminum | ||||||
Finishing |
plain, polishing, hot dip galvanized ( HDG ) | ||||||
Applied Cladding | Stone, granite, marble, tile, terracotta, ceramics, glass, aluminum | ||||||
Type |
T type, L type, Y type, R type, SE type |
||||||
ProductionProcess | Cold Froging,Hot Forging,Machining and CNC for Customized fastener | ||||||
Customized ProductsLead time | Busy season:15-30days,Slack seaon:10-20days | ||||||
Fress Samples for standard fastener | |||||||
For more information visit: www.gtzlfastener.com |
Material NO. | C | Si | Mn | P | S | Ti |
Q500 | 0.18 | 0.6 | 0.03 | 0.06 | 0.025 | 0.2 |
Q345 | 0.2 | 0.5 | 0.035 | 0.045 | 0.035 | 0.2 |
Q550 | 0.18 | 0.6 | 0.03 | 0.045 | 0.03 |
0.2 |
